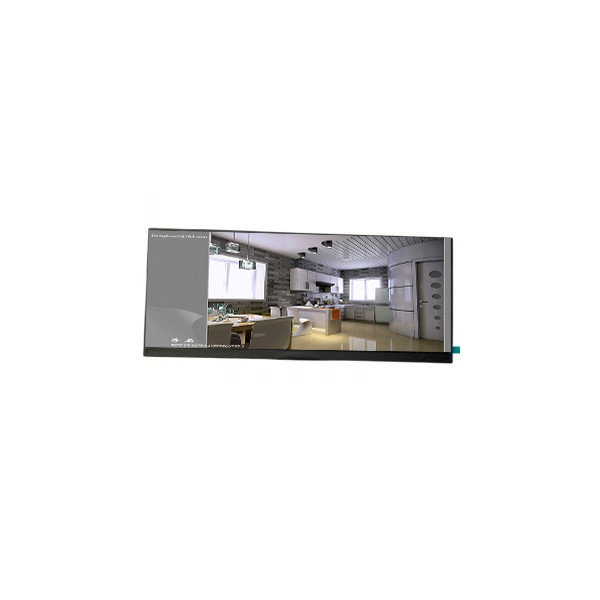

P286IVN01.0 CELL 28.6 inch 1920*540 4000:1 LCD screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P286IVN01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P286IVN01.0 CELL | Diagonal Size: | 28.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×540 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×196.425(H) Mm |
| Frame Rate: | 60Hz | Application: | Digital Signage、Stretched Bar LCD |
Product Description
P286IVN01.0 CELL 28.6 inch 1920*540 4000:1 LCD screen Panel
P286IVN01.0 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | P286IVN01.0 CELL |
| Diagonal Size | 28.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×540 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×196.425(H) mm |
| Bezel Opening | - |
| Outline Dim. | 711.4(H)×209.425(V)×1.4(D) mm |
| Treatment | Antiglare (Haze 2%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 5.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | 467g (Typ.) |
| Designed For | Digital Signage,Stretched Bar LCD |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source + 2 gate chips |
| Interface Type | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C; Storage Temperature: -20 ~ 60 °C |
| P286IVN01.0 CELL 28.6 inch 1920*540 4000:1 LCD screen Panel | |
