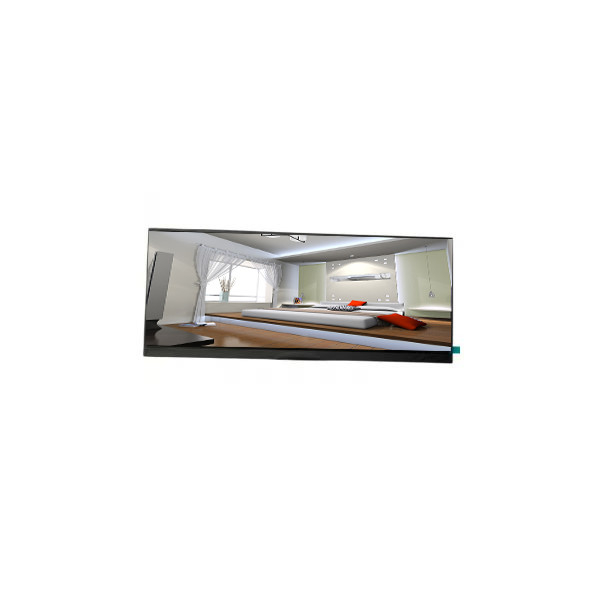

high quality 9.2 inch HSD092JPW1-B10-0299 1920*384 60Hz LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD092JPW1-B10-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD092JPW1-B10-0299 | Diagonal Size: | 9.2" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 1920(RGB)×384 212PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 229.248(W)×45.849(H) Mm |
| Touchscreen: | Without | Used For: | Stretched Bar LCD、Automotive Display |
Product Description
high quality 9.2 inch HSD092JPW1-B10-0299 1920*384 60Hz LCD screen
HSD092JPW1-B10-0299 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD092JPW1-B10-0299 |
| Diagonal Size | 9.2" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1920(RGB)×384 212PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 229.248(W)×45.849(H) mm |
| Bezel Opening | - |
| Outline Size | 234.73(W)×55.35(H)×1.07(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Color Depth | 16.7M 75%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Stretched Bar LCD,Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| high quality 9.2 inch HSD092JPW1-B10-0299 1920*384 60Hz LCD screen | |
HSD092JPW1-B10-0299 LCD Panel Shipping and Package :
HSD092JPW1-B10-0299 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
