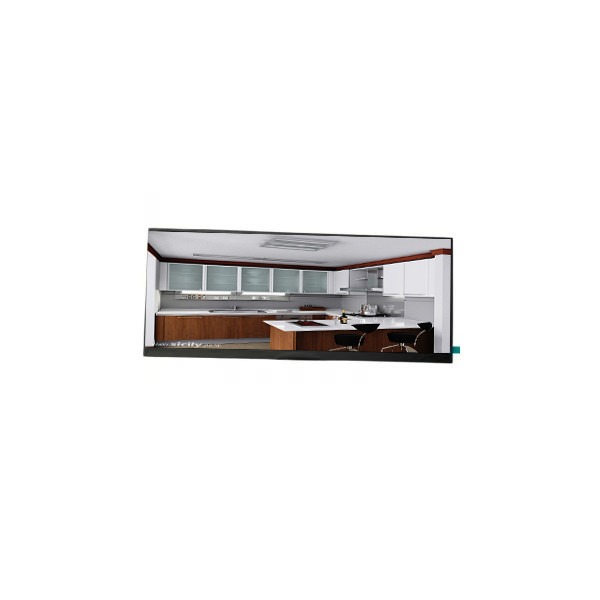

in stock 9.2 inch 1920*384 HSD092JPW1-B10 LVDS LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD092JPW1-B10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD092JPW1-B10 | Diagonal Size: | 9.2" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×384 212PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 229.248(W)×45.849(H) Mm |
| Touchscreen: | Without | Used For: | Outdoor High Brightness、Stretched Bar LCD、Automotive Display |
Product Description
in stock 9.2 inch 1920*384 HSD092JPW1-B10 LVDS LCD screen
HSD092JPW1-B10 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD092JPW1-B10 |
| Diagonal Size | 9.2" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×384 212PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 229.248(W)×45.849(H) mm |
| Bezel Opening | - |
| Outline Dim. | 237.341(H)×57.8(V) mm |
| Treatment | Hard coating |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 75%NTSC |
| Light Source | WLED, 30K hours, W/O Driver |
| Weight | TBD |
| Designed For | Outdoor High Brightness,Stretched Bar LCD,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| in stock 9.2 inch 1920*384 HSD092JPW1-B10 LVDS LCD screen | |
HSD092JPW1-B10 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
HSD092JPW1-B10 LCD Panel Shipping and Package :
HSD092JPW1-B10 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
HSD092JPW1-B10 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
HSD092JPW1-B10 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
