Stretched Bar LCD

HSD092JPW1-A10-0299 9.2 inch 1920*384 60Hz LCD module

All Category

Floor Standing Digital Signage

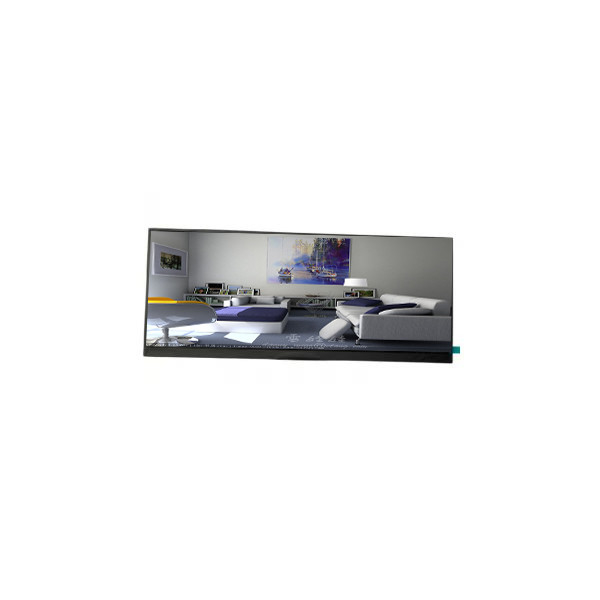

HSD092JPW1-A10-0299 9.2 inch 1920*384 60Hz LCD module

Brand Name:	HannStar
Model Number:	HSD092JPW1-A10-0299
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

HSD092JPW1-A10-0299

Diagonal Size:

9.2" (Native Bar)

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

1920(RGB)×384 212PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

229.248(W)×45.849(H) Mm

Touchscreen:

Without

Used For:

Stretched Bar LCD、Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD092JPW1-A10-0299 9.2 inch 1920*384 60Hz LCD module

HSD092JPW1-A10-0299 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD092JPW1-A10-0299
Diagonal Size	9.2" (Native bar)
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	1920(RGB)×384 212PPI
Pixel Format	RGB Vertical Stripe
Active Area	229.248(W)×45.849(H) mm
Bezel Opening	-
Outline Size	234.73(W)×55.35(H)×1.07(D) mm
Surface	Hard coating
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Max.)(Tr+Td)
Glass Depth	-
Transmissivity	4.3% (Typ.)(with Polarizer)
Display Colors	16.7M 50%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Panel Weight	45.0g (Typ.)
Application	Stretched Bar LCD,Automotive Display
Signal Interface	LVDS (1 ch, 8-bit) + SPI, 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C
HSD092JPW1-A10-0299 9.2 inch 1920*384 60Hz LCD module

HSD092JPW1-A10-0299 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

HSD092JPW1-A10-0299 LCD Panel Shipping and Package :

HSD092JPW1-A10-0299 9.2 inch 1920*384 60Hz LCD module 0

HSD092JPW1-A10-0299 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

HSD092JPW1-A10-0299 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

HSD092JPW1-A10-0299 LCD Panel FAQ :

Q: What happen if the lcd panel HSD092JPW1-A10-0299 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order HSD092JPW1-A10-0299 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
