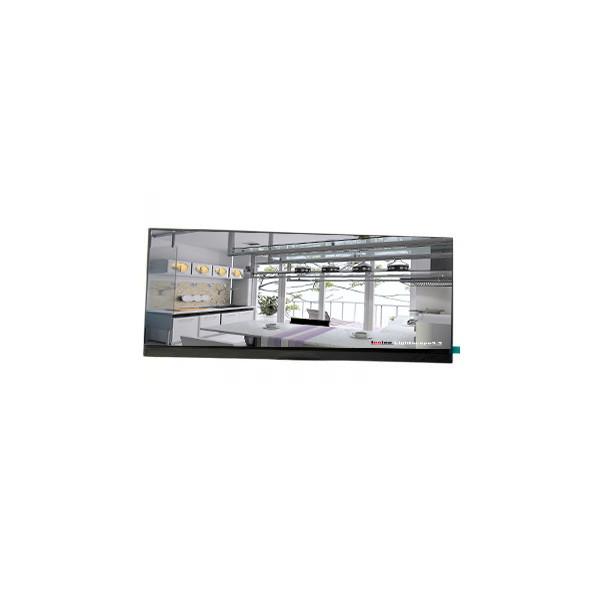

original 8.8 inch HSD088IPW1-B00 40 pins LCD Display Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD088IPW1-B00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD088IPW1-B00 | Diagonal Size: | 8.8" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×1920 222PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 54.72(W)×218.88(H) Mm |
| Touchscreen: | Without | Used For: | Stretched Bar LCD、Automotive Display |
Product Description
original 8.8 inch HSD088IPW1-B00 40 pins LCD Display Parts
HSD088IPW1-B00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD088IPW1-B00 |
| Diagonal Size | 8.8" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×1920 222PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 54.72(W)×218.88(H) mm |
| Bezel Opening | - |
| Brightness | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | WLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Stretched Bar LCD,Automotive Display |
| Signal Interface | MIPI (4 data lanes), 40 pins Connector |
| Input Voltage | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| original 8.8 inch HSD088IPW1-B00 40 pins LCD Display Parts | |
HSD088IPW1-B00 LCD Panel Shipping and Package :
HSD088IPW1-B00 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order HSD088IPW1-B00 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel HSD088IPW1-B00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
