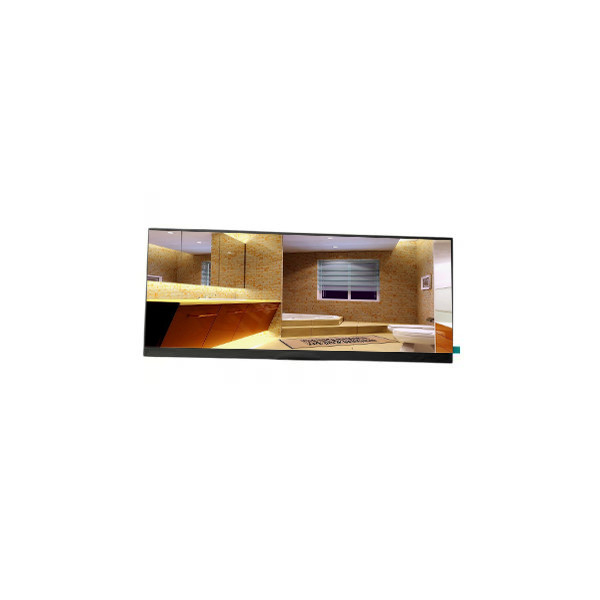

1280*256 GPS5082W710B 8.2 inch LCD Display FOR Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | Giantplus |
| Model Number: | GPS5082W710B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | CLAA121WB01AW | Diagonal Size: | 8.2" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1280(RGB)×256 158PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 204.672(W)×40.9334(H) Mm |
| Touchscreen: | Without | Used For: | Stretched Bar LCD、Automotive Display |
Product Description
1280*256 GPS5082W710B 8.2 inch LCD Display FOR Stretched Bar LCD
GPS5082W710B LCD Panel Product details :
| Brand | Giantplus |
| Model P/N | GPS5082W710B |
| Diagonal Size | 8.2" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1280(RGB)×256 158PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 204.672(W)×40.9334(H) mm |
| Bezel Opening | - |
| Outline Size | 209.86(W)×50.85(H)×1(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | - |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.7M 51%NTSC |
| Frequency | 60Hz |
| Weight | - |
| Surface | Without Polarizer |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | FFS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Transmissivity | 4.3% (Typ.) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Stretched Bar LCD,Automotive Display |
| Driver IC | COGSuggest HX8290-A06, HX8694B |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C |
| 1280*256 GPS5082W710B 8.2 inch LCD Display FOR Stretched Bar LCD | |
GPS5082W710B LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
GPS5082W710B LCD Panel Shipping and Package :
GPS5082W710B LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
GPS5082W710B LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
GPS5082W710B LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd GPS5082W710B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order GPS5082W710B ship?
A: The order are shipped within 1-2 working days after received the payment.
Want to Know more details about this product
