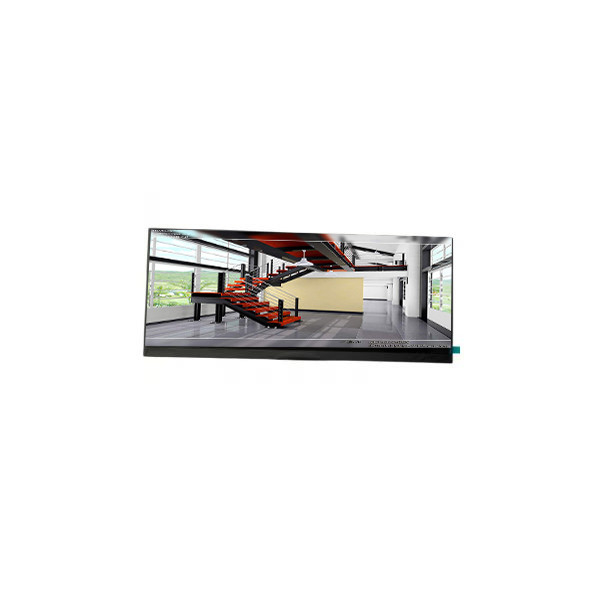

C145HAX01.1 2560*720 14.5 inch LCD Screen LCD Display Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C145HAX01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | C145HAX01.1 | Diagonal Size: | 14.5" (Native Bar) |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 2560(RGB)×720 183PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 354.816(W)×99.792(H) Mm |
| Touchscreen: | In-Cell Touch, I²C | Used For: | Outdoor High Brightness、Stretched Bar LCD、Automotive Display |
Product Description
C145HAX01.1 2560*720 14.5 inch LCD Screen LCD Display Parts
C145HAX01.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | C145HAX01.1 |
| Diagonal Size | 14.5" (Native bar) |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 2560(RGB)×720 183PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 354.816(W)×99.792(H) mm |
| Bezel Opening | - |
| Outline(mm) | 362.42 × 112.41 (H×V×D) |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (3H), Antireflection |
| Luminance | 900 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 100%sRGB |
| Backlight | WLED, 20K hours, With LED Driver |
| Mass | 650±65g |
| Used for | Outdoor High Brightness,Stretched Bar LCD,Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| C145HAX01.1 2560*720 14.5 inch LCD Screen LCD Display Parts | |
C145HAX01.1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
C145HAX01.1 LCD Panel Shipping and Package :
C145HAX01.1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
C145HAX01.1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
C145HAX01.1 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
