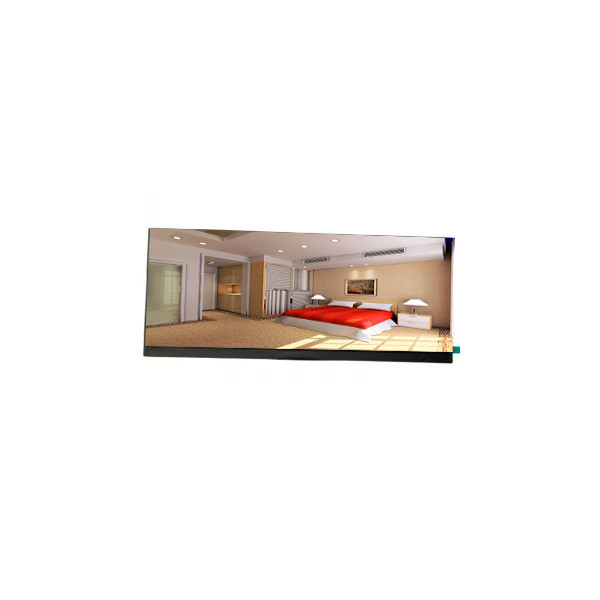

New 1920*720 C103HAX01.A 12.3 inch LCD Screen Touch Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C103HAX01.A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | C103HAX01.A | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL, FOG | Resolution: | 1920(RGB)×720 200PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 243.648(W)×91.368(H) Mm |
| Touchscreen: | In-Cell Touch, I²C | Used For: | Stretched Bar LCD、Automotive Display |
Product Description
New 1920*720 C103HAX01.A 12.3 inch LCD Screen Touch Display
C103HAX01.A LCD Panel Product details :
| Brand | AUO |
| Model P/N | C103HAX01.A |
| Diagonal Size | 12.3" |
| Panel Type | LTPS TFT-LCD, CELL, FOG |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | - |
| Outline(mm) | 248.65 × 100.57× 0.74 (H×V×D) |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1400 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | - |
| Color Depth | 16.7M 85%NTSC |
| Backlight | No B/L |
| Mass | 41.0±4.1g |
| Used for | Stretched Bar LCD,Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C |
| Driver IC list | Built-inCOGHX83192-C |
| Signal Type | LVDS (1 ch, 8-bit), 80 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| New 1920*720 C103HAX01.A 12.3 inch LCD Screen Touch Display | |
C103HAX01.A LCD Panel Shipping and Package :
C103HAX01.A LCD Panel FAQ :
Q: What happen if the lcd panel C103HAX01.A I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
