C097SWG4 R0 9.7 inch 1600*400 262K LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C097SWG4 R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | C097SWG4 R0 | Diagonal Size: | 9.7" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 1600×400(RGB) 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 240(W)×58.92(H) Mm |
| Touchscreen: | Without | Used For: | Stretched Bar LCD、Automotive Display |
Product Description

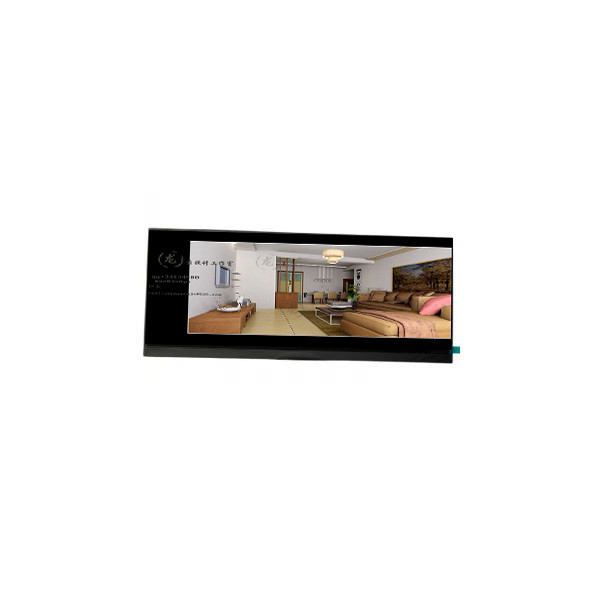

C097SWG4 R0 9.7 inch 1600*400 262K LCD Screen Panel
C097SWG4 R0 LCD Panel Product details :
| Brand | IVO |
| Model P/N | C097SWG4 R0 |
| Diagonal Size | 9.7" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1600×400(RGB) 169PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 240(W)×58.92(H) mm |
| Bezel Opening | - |
| Outline Size | 250.231(W)×63.92(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 3.2% (Typ.)(with Polarizer) |
| Display Colors | 262K 71%DCI-P3 |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | NoSuggest OTA7290B |
| Panel Weight | 37.5/41.25g (Typ./Max.) |
| Application | Stretched Bar LCD,Automotive Display |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| C097SWG4 R0 9.7 inch 1600*400 262K LCD Screen Panel | |
C097SWG4 R0 LCD Panel Shipping and Package :
C097SWG4 R0 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel C097SWG4 R0 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
