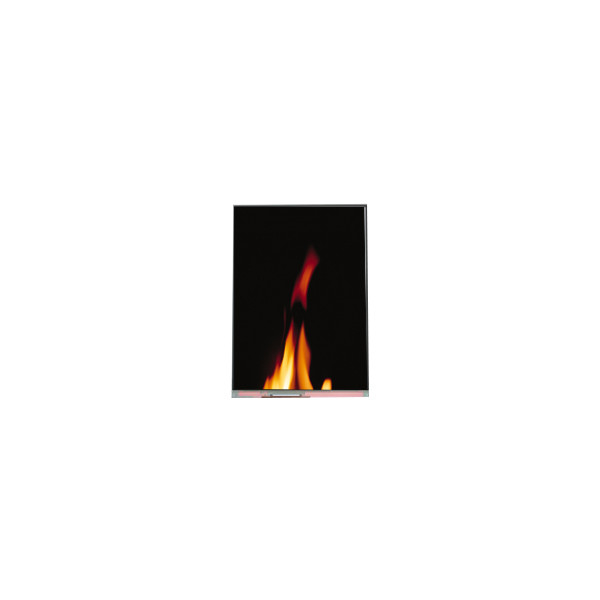

PN-MG605 60 inch 1366*768 60Hz LCD screen for Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | PN-MG605 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PN-MG605 | Diagonal Size: | 60" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 26PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1328.78(W)×747.072(H) Mm |
| Used For: | Video Wall | Touch Screen: | Without |
Product Description
PN-MG605 60 inch 1366*768 60Hz LCD screen for Video Wall
PN-MG605 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | PN-MG605 |
| Diagonal Size | 60" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 26PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1328.78(W)×747.072(H) mm |
| Bezel Opening | 1329.4(W)×747.722(H) mm |
| Outline Dim. | 1335.9(W)×754.2(H)×104.2(D) mm |
| Treatment | Hard coating (2H), Antireflection |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 6 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 16.7M 80%NTSC |
| Light Source | WLED, 37K hours, W/O Driver |
| Spliced Seam | 7.1 mm (active to active seam) |
| Designed For | Video Wall |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 46 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| PN-MG605 60 inch 1366*768 60Hz LCD screen for Video Wall | |
PN-MG605 LCD Panel Shipping and Package :
PN-MG605 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel PN-MG605 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
