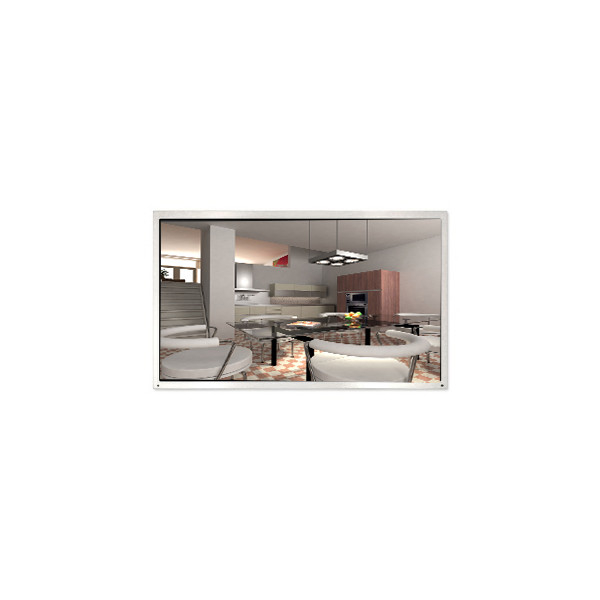

P550HVN08.1 CELL 55.0 inch 1920*1080 16.7M LCD screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P550HVN08.1 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P550HVN08.1 CELL | Diagonal Size: | 55.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 40PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1209.6(W)×680.4(H) Mm |
| Used For: | Video Wall | Touch Screen: | Without |
Product Description
P550HVN08.1 CELL 55.0 inch 1920*1080 16.7M LCD screen module
P550HVN08.1 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | P550HVN08.1 CELL |
| Diagonal Size | 55" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1209.6(W)×680.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 1211.25 × 682.05× 1.4 (H×V×D) |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.8% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 99%sRGB |
| Backlight | No B/L |
| Splicing Seam | - |
| Used for | Video Wall |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-inCOF16 source + 8 gate chips |
| Signal Type | LVDS (2 ch, 8-bit), 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| P550HVN08.1 CELL 55.0 inch 1920*1080 16.7M LCD screen module | |
P550HVN08.1 CELL LCD Panel Shipping and Package :
P550HVN08.1 CELL LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
