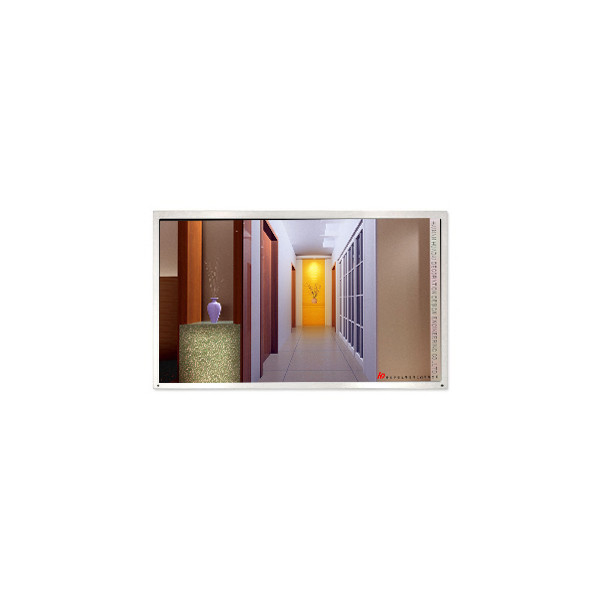

MG4601B01-1 46.0 inch 1920*1080 LVDS LCD Panel LCD Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | MG4601B01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MG4601B01-1 | Diagonal Size: | 46.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1018.08(W)×572.67(H) Mm |
| Used For: | Video Wall | Touch Screen: | Without |
Product Description
MG4601B01-1 46.0 inch 1920*1080 LVDS LCD Panel LCD Monitor
MG4601B01-1 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | MG4601B01-1 |
| Diagonal Size | 46" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1018.08(W)×572.67(H) mm |
| Bezel Opening | - |
| Outline Size | 1021.6(W)×576.2(H)×60.7(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | WLED, 30K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Videowall Seam | 3.5 mm (active to active seam) |
| Application | Video Wall |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| MG4601B01-1 46.0 inch 1920*1080 LVDS LCD Panel LCD Monitor | |
MG4601B01-1 LCD Panel Shipping and Package :
MG4601B01-1 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
