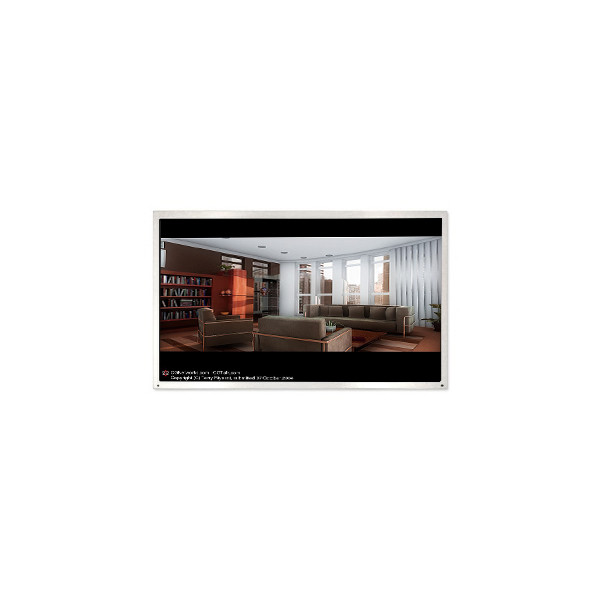

new 46.0 inch 1366*768 LTI460AL05 60Hz lcd screen LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTI460AL05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTI460AL05 | Diagonal Size: | 46.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 34PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1018.35(W)×572.544(H) Mm |
| Used For: | Video Wall | Touch Screen: | Without |
Product Description
new 46.0 inch 1366*768 LTI460AL05 60Hz lcd screen LCD Panel
LTI460AL05 LCD Panel Product details :
| Brand | Samsung |
| Model P/N | LTI460AL05 |
| Diagonal Size | 46" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 34PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1018.35(W)×572.544(H) mm |
| Bezel Opening | 1018.553(W)×572.744(H) mm |
| Outline Dim. | 1025.65(H)×579.844(V)×59.43(D) mm |
| Treatment | Antiglare (Haze 5.5%), Hard coating (3H) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 4500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/6 (Typ.)(Tr/Td), 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | S-PVA, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED, 50K hours, With LED Driver |
| Spliced Seam | 7.3 mm (active to active seam) |
| Designed For | Video Wall |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| new 46.0 inch 1366*768 LTI460AL05 60Hz lcd screen LCD Panel | |
LTI460AL05 LCD Panel Shipping and Package :
LTI460AL05 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
