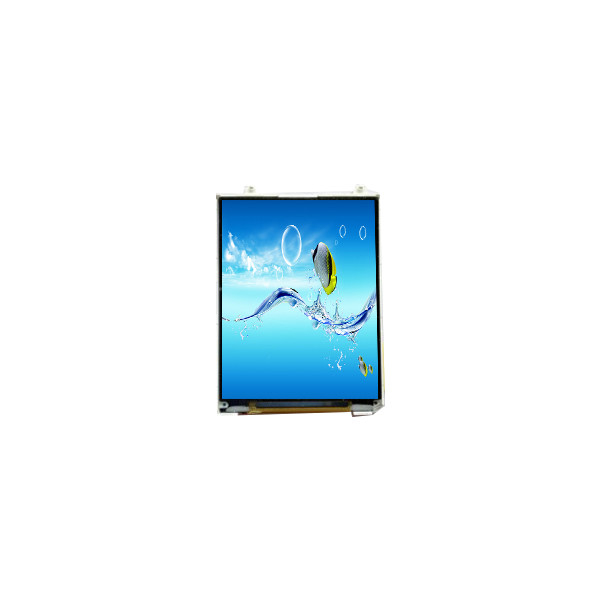

TX54D72VC0BAA 21.2 inch 2048*1536 LVDS lcd screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | TX54D72VC0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX54D72VC0BAA | Diagonal Size: | 21.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2048(RGB)×1536, QXGA 120PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 431.616(W)×323.712(H) Mm |
| Used For: | Medical Imaging | Touch Screen: | Without |
Product Description
TX54D72VC0BAA 21.2 inch 2048*1536 LVDS lcd screen Monitor
TX54D72VC0BAA LCD Panel Product details :
| Brand | JDI |
| Model P/N | TX54D72VC0BAA |
| Diagonal Size | 21.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2048(RGB)×1536, QXGA 120PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 431.616(W)×323.712(H) mm |
| Bezel Opening | 436.6(W)×328.6(H) mm |
| Outline Size | 460.6(W)×359(H)×31(D) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥50) |
| Best View on | Symmetry |
| Display Colors | 1.07B 100%sRGB |
| Frequency | 60Hz |
| Weight | 3.20/3.40Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| Display Mode | IPS-Pro, Normally Black, Transmissive |
| Response Time | 12/10 (Typ.)(Tr/Td) |
| Lamp Type | WLED, With LED Driver |
| Touch Screen | Without |
| Application | Medical Imaging |
| Signal Interface | LVDS (4 ch, 10-bit), 41 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C |
| TX54D72VC0BAA 21.2 inch 2048*1536 LVDS lcd screen Monitor | |
TX54D72VC0BAA LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
TX54D72VC0BAA LCD Panel Shipping and Package :
TX54D72VC0BAA LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
TX54D72VC0BAA LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
TX54D72VC0BAA LCD Panel FAQ :
Q: How long will I receive my goods TX54D72VC0BAA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of TX54D72VC0BAA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TX54D72VC0BAA ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TX54D72VC0BAA ?
A: Of course!sample order is welcome !
