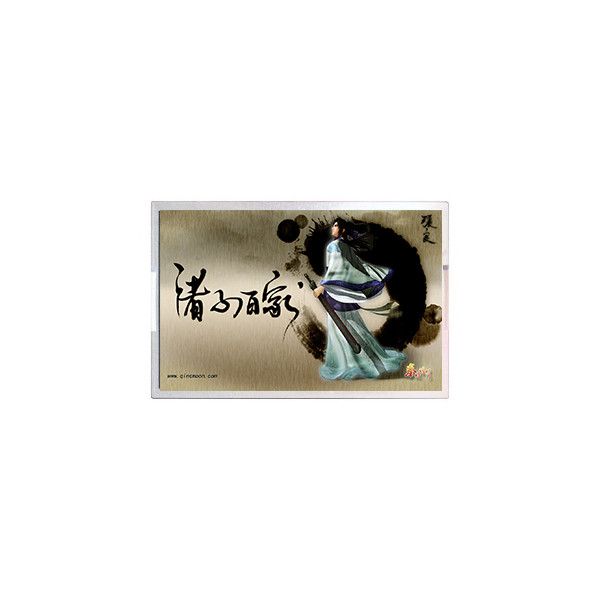

27.0 inch 3840*2160 TM270CDHPXX-00 800 cd/m2 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM270CDHPXX-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM270CDHPXX-00 | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 596.16(W)×335.34(H) Mm |
| Used For: | Medical Imaging、Outdoor High Brightness | Touch Screen: | Without |
Product Description
27.0 inch 3840*2160 TM270CDHPXX-00 800 cd/m2 lcd screen
TM270CDHPXX-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM270CDHPXX-00 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.16(W)×335.34(H) mm |
| Bezel Opening | 600.2(W)×339.4(H) mm |
| Outline Size | 630(W)×368(H)×25.5(D) mm |
| Surface | Antiglare |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Display Colors | 1.07B |
| Lamp Type | WLED, With LED Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Medical Imaging,Outdoor High Brightness |
| Signal Interface | eDP (4 Lanes), 43 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C |
| 27.0 inch 3840*2160 TM270CDHPXX-00 800 cd/m2 lcd screen | |
TM270CDHPXX-00 LCD Panel Shipping and Package :
TM270CDHPXX-00 LCD Panel FAQ :
Q: What happen if the lcd panel TM270CDHPXX-00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TM270CDHPXX-00 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
