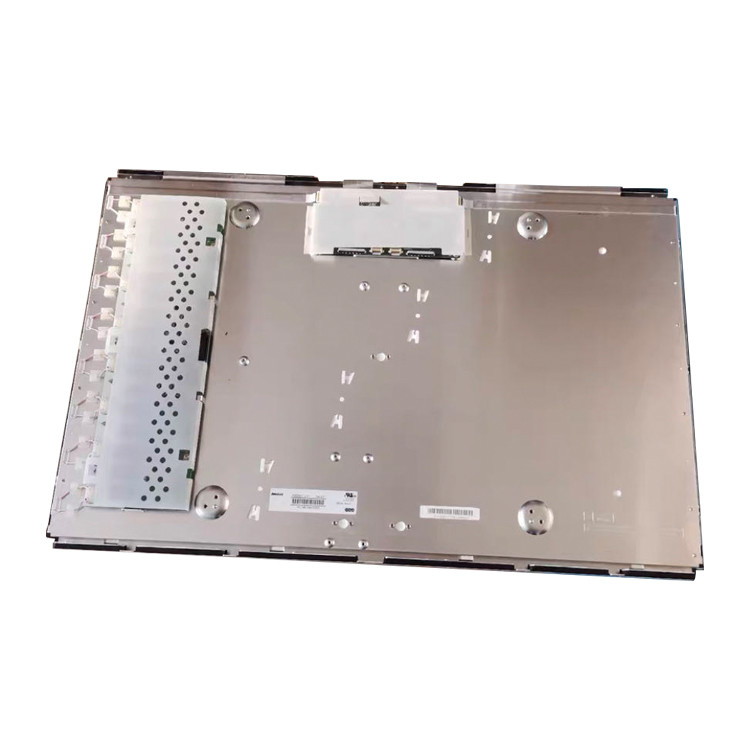

R300M1-L01 4096*2560 lcd panel screen with Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R300M1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R300M1-L01 | Diagonal Size: | 30" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 4096(LCR)×2560, DQSXGA 161PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 645.12(W)×403.2(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 50Hz |
Product Description
R300M1-L01 4096*2560 lcd panel screen with Medical Imaging
R300M1-L01 LCD Panel Product details :
| Chimei Innolux LCD Screen R300M1-L01 | |
| Brand | Chimei Innolux |
| Model P/N | R300M1-L01 |
| Diagonal Size | 30" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 4096(LCR)×2560, DQSXGA 161PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 645.12(W)×403.2(H) mm |
| Outline Size | 678(W)×448(H) ×49.5(D) mm |
| Bezel Opening | 649.2(W)×413.5(H) mm |
| Surface | Antiglare (Haze 40%), Hard coating (3H) |
| Luminance | 1200 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥20) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Response Time | 50/15 (Typ.)(Tr/Td) |
| Display Colors | Grayscale |
| Frequency | 50Hz |
| Lamp Type | CCFL , 50K hours , With Inverter |
| Designed For | Medical Imaging |
| Panel Weight | 4.60Kgs (Typ.) |
| Interface Type | LVDS (4 ch, 10-bit) , 82 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| R300M1-L01 4096*2560 lcd panel screen with Medical Imaging | |
R300M1-L01 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
R300M1-L01 LCD Panel Shipping and Package :
R300M1-L01 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
R300M1-L01 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
R300M1-L01 LCD Panel FAQ :
Q: Do you accept sample orders of R300M1-L01 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of R300M1-L01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of R300M1-L01 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of R300M1-L01 ?
A: The order will be shipped within 2-3 working days after received your payment.
