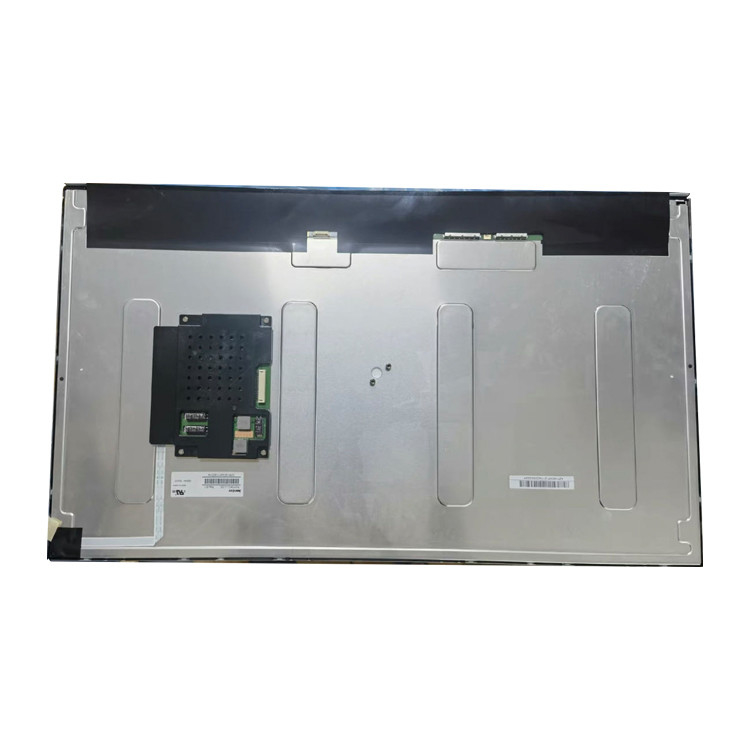

27 inch 2560*1440 R270KCJ-L01 92 pins cd panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R270KCJ-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R270KCJ-L01 | Diagonal Size: | 27" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 596.736(W)×335.664(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 60Hz |
Product Description
27 inch 2560*1440 R270KCJ-L01 92 pins cd panel Module
R270KCJ-L01 LCD Panel Product details :
| Innolux LCD Screen R270KCJ-L01 | |
| Brand | Innolux |
| Model P/N | R270KCJ-L01 |
| Diagonal Size | 27" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Outline Size | 630(H)×368.2(V) ×25(D) mm |
| Bezel Opening | 601.3(W)×340.3(H) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Response Time | 8/8 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 92% NTSC |
| Weight | 3.10/3.23Kgs (Typ./Max.) |
| Lamp Type | WLED , 40K hours , With LED Driver |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Interface Type | LVDS (4 ch, 8-bit) , 92 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 27 inch 2560*1440 R270KCJ-L01 92 pins cd panel Module | |
R270KCJ-L01 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
R270KCJ-L01 LCD Panel Shipping and Package :
R270KCJ-L01 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
R270KCJ-L01 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
R270KCJ-L01 LCD Panel FAQ :
Q: Can You declare my order of R270KCJ-L01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods R270KCJ-L01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of R270KCJ-L01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of R270KCJ-L01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
