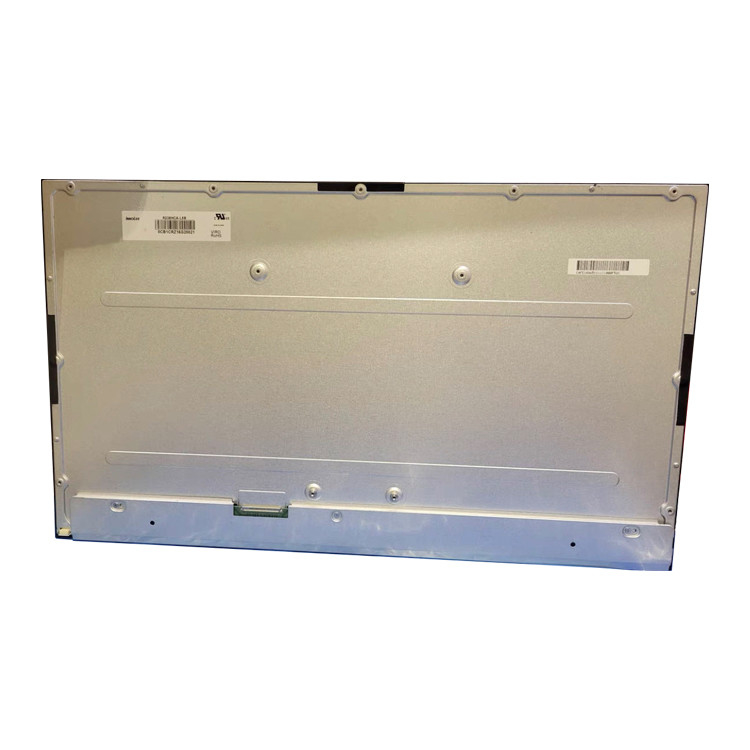

23.8 inch R238HCA-L5B 1920*080 lcd panel lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R238HCA-L5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R238HCA-L5B | Diagonal Siz20.8e: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 60Hz |
Product Description
23.8 inch R238HCA-L5B 1920*080 lcd panel lcd screen
R238HCA-L5B LCD Panel Product details :
| Innolux LCD Screen R238HCA-L5B | |
| Brand | Innolux |
| Model P/N | R238HCA-L5B |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Outline Size | 535(W)×313(H) ×12.7(D) mm |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Response Time | 8/7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 74% NTSC |
| Weight | 2.04/2.37/2.4Kgs (Min./Typ./Max.) |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 23.8 inch R238HCA-L5B 1920*080 lcd panel lcd screen | |
R238HCA-L5B LCD Panel Shipping and Package :
R238HCA-L5B LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
