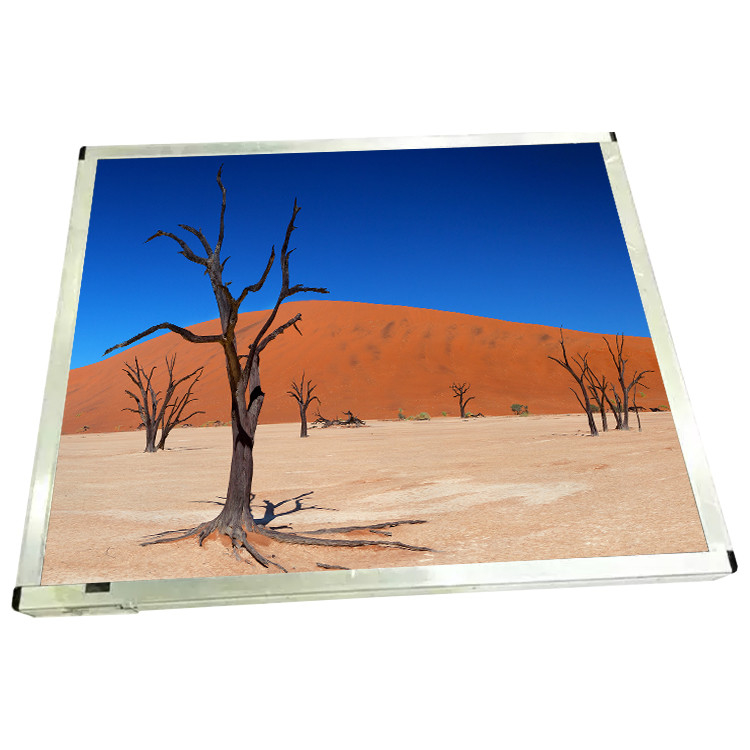

21.3 inch 2560*2048 R213TFE-L54 LCD Monitor Screen Display Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R213TFE-L54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R213TFE-L54 | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2560(LCR)×2048, QSXGA 153PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 422.4(W)×337.92(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 60Hz |
Product Description
21.3 inch 2560*2048 R213TFE-L54 LCD Monitor Screen Display Parts
R213TFE-L54 LCD Panel Product details :
| CMO LCD Screen R213TFE-L54 | |
| Brand | CMO |
| Model P/N | R213TFE-L54 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2560(LCR)×2048, QSXGA 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 422.4(W)×337.92(H) mm |
| Outline Size | 459.8×375.3×30.5 (H×V×D) |
| Bezel Opening | 426.4(W)×344.5(H) mm |
| Treatment | Antiglare |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥20) |
| Operating Mode | DD-IPS, Normally Black, Transmissive |
| Display Colors | Grayscale |
| Weight | 3.37±0.05Kgs |
| Lamp Type | WLED , 50K hours |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Interface Type | LVDS (4 ch, 10-bit) , 90 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 21.3 inch 2560*2048 R213TFE-L54 LCD Monitor Screen Display Parts | |
R213TFE-L54 LCD Panel Shipping and Package :
R213TFE-L54 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
