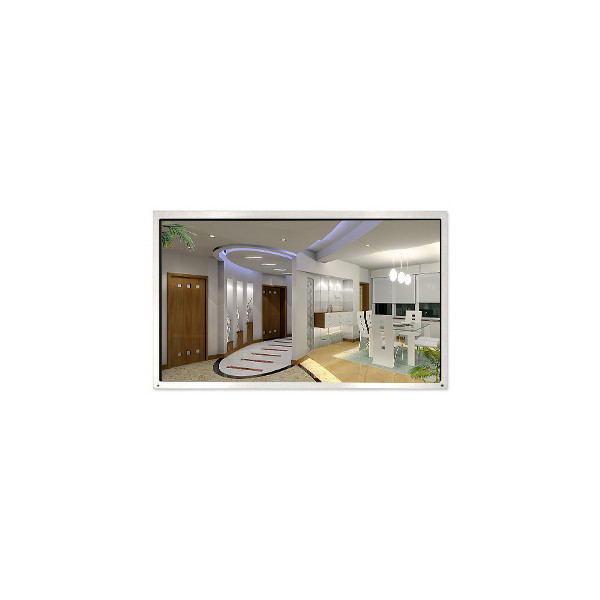

R213RFE-LU2 21.3 inch 2048*1536 102 pins LCD Monitors Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R213RFE-LU2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R213RFE-LU2 | Diagonal Size: | 21.3 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2048(LCR)×1536, QXGA 120PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 433.15(W)×324.86(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 60Hz |
Product Description
R213RFE-LU2 21.3 inch 2048*1536 102 pins LCD Monitors Screen
R213RFE-LU2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | R213RFE-LU2 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2048(LCR)×1536, QXGA 120PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 433.15(W)×324.86(H) mm |
| Bezel Opening | 438(W)×330(H) mm |
| Outline Dim. | 457(H)×350(V)×23.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 2000 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15/13 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | Grayscale 71%NTSC |
| Light Source | WLED, 50K hours, With LED Driver |
| Weight | 3.04±0.15Kgs |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 8/10-bit), 102 pinsConnector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| R213RFE-LU2 21.3 inch 2048*1536 102 pins LCD Monitors Screen | |
R213RFE-LU2 LCD Panel Shipping and Package :
R213RFE-LU2 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
