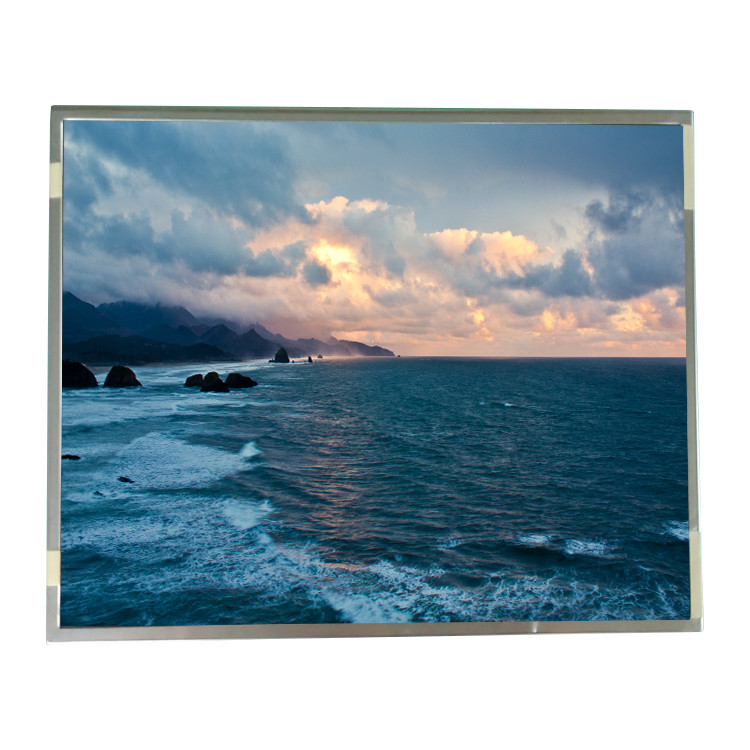

Name: Original 19.0 inch R190E6-L01 LCD Display Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: R190E6-L01
Availability: InStock

Brand Name:	Innolux
Model Number:	R190E6-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

R190E6-L01

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 86PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

376.32(W)×301.056(H) Mm

Used For:

Medical Imaging

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 19.0 inch R190E6-L01 LCD Display Screen

R190E6-L01 LCD Panel Product details :

Chimei Innolux LCD Screen R190E6-L01
Brand	Chimei Innolux
Model P/N	R190E6-L01
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline(mm)	396 × 324 × 37 (H×V×D)
Treatment	Antiglare
Luminance	650 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥20)
Response	15/10 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	DD-IPS, Normally Black, Transmissive
Color Depth	16.7M 100% sRGB
Backlight	14 pcs CCFL , 50K hours , With Inverter
Mass	1.70/1.80Kgs (Typ./Max.)
Used for	Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C
Original 19.0 inch R190E6-L01 LCD Display Screen

R190E6-L01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

R190E6-L01 LCD Panel Shipping and Package :

Original 19.0 inch R190E6-L01 LCD Display Screen 0

R190E6-L01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

R190E6-L01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

R190E6-L01 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of R190E6-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of R190E6-L01 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of R190E6-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of R190E6-L01 ?

A: Of course!sample order is welcome !
