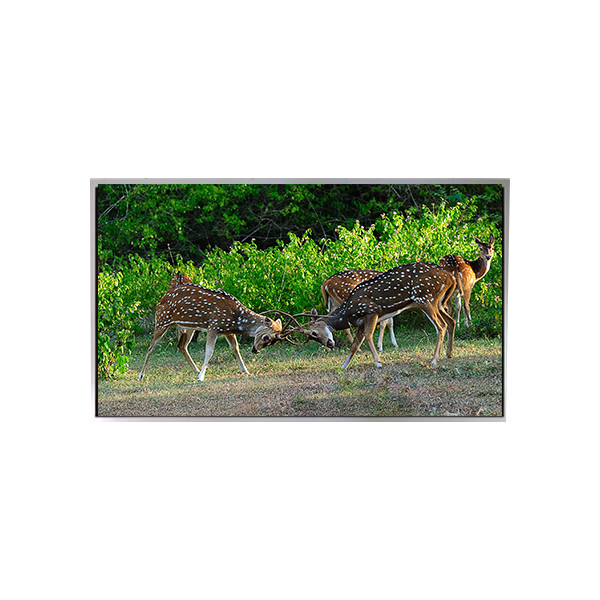

Hot Sell 21.3 inch 1200*1600 P213UXF1MA10 LVDS lcd Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P213UXF1MA10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P213UXF1MA10 | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1200(RGB)×1600, UXGA 93PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 324.854(W)×433.152(H) Mm |
| Used For: | Medical Imaging | Refresh Rate: | 60Hz |
Product Description
Hot Sell 21.3 inch 1200*1600 P213UXF1MA10 LVDS lcd Monitor
P213UXF1MA10 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | P213UXF1MA10 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1200(RGB)×1600, UXGA 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 324.854(W)×433.152(H) mm |
| Bezel Opening | 327.86(W)×436.152(H) mm |
| Outline Size | 336.1(W)×453(H)×18(D) mm |
| Surface | Antiglare |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 8S4PWLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit), 41 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Hot Sell 21.3 inch 1200*1600 P213UXF1MA10 LVDS lcd Monitor | |
P213UXF1MA10 LCD Panel Shipping and Package :
P213UXF1MA10 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
