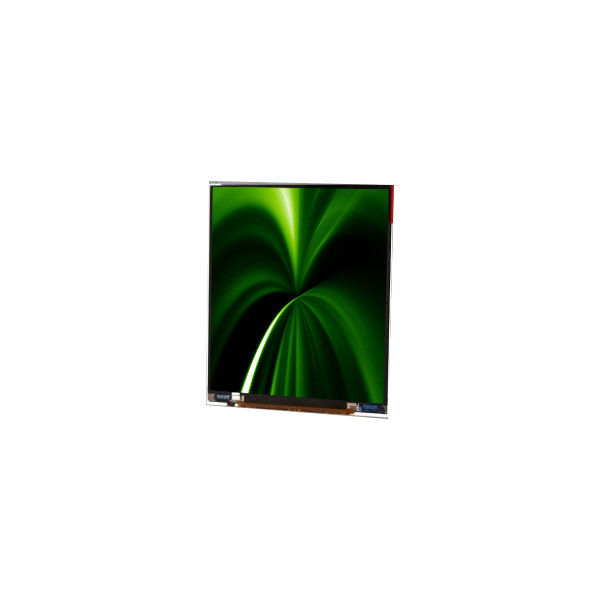

ORIGINAL 21.3 inch LPM213M430A 1536*2048 WLED lcd Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM213M430A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM213M430A | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1536(RGB)×2048 120PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 324.86(W)×433.15(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description
ORIGINAL 21.3 inch LPM213M430A 1536*2048 WLED lcd Monitor
LPM213M430A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM213M430A |
| Diagonal Size | 21.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1536(RGB)×2048 120PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 324.86(W)×433.15(H) mm |
| Bezel Opening | - |
| Outline Size | 336(W)×453.1(H) mm |
| Brightness | 1100 cd/m² (Typ.) |
| Viewing Angle | 88/88/88/88 (Min.)(CR≥50) |
| Best View on | Symmetry |
| Display Colors | 1.07B 72%NTSC |
| Frequency | 60Hz |
| Weight | 2.45Kgs (Typ.) |
| Surface | - |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | IPS NEO, Normally Black, Transmissive |
| Response Time | 13 (Typ.)(G to G) |
| Lamp Type | WLED, With LED Driver |
| Touch Screen | Without |
| Application | Medical Imaging |
| Signal Interface | LVDS (4 ch, 10-bit) |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C |
| ORIGINAL 21.3 inch LPM213M430A 1536*2048 WLED lcd Monitor | |
LPM213M430A LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
LPM213M430A LCD Panel Shipping and Package :
LPM213M430A LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
LPM213M430A LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
LPM213M430A LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LPM213M430A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LPM213M430A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LPM213M430A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LPM213M430A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
