LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM213M429B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM213M429B | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 2048(LCR)×2560 153PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 337.92(W)×422.4(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description

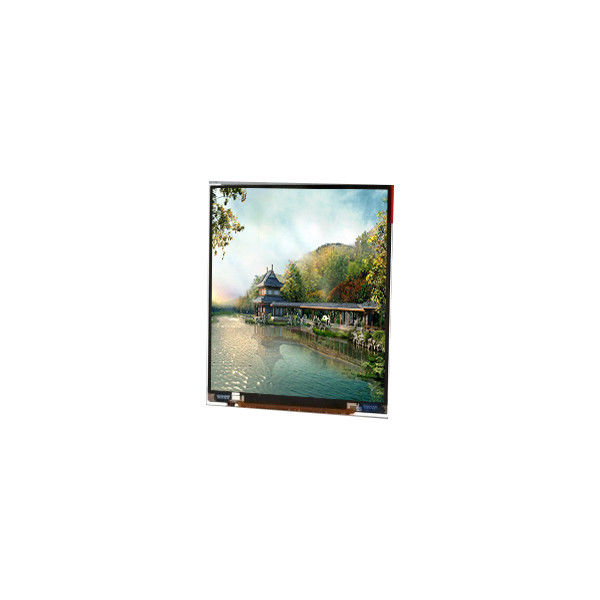

LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts
LPM213M429B LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM213M429B |
| Diagonal Size | 21.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 2048(LCR)×2560 153PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 337.92(W)×422.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 349 × 443 (H×V×D) |
| Treatment | - |
| Luminance | 2500 cd/m² (Typ.) |
| Contrast Ratio | 1700 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Min.)(CR≥50) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS NEO, Normally Black, Transmissive |
| Color Depth | Grayscale |
| Backlight | WLED, With LED Driver |
| Mass | 2.50Kgs (Typ.) |
| Used for | Medical Imaging |
| Refresh Rate | 50Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 10-bit) |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts | |
