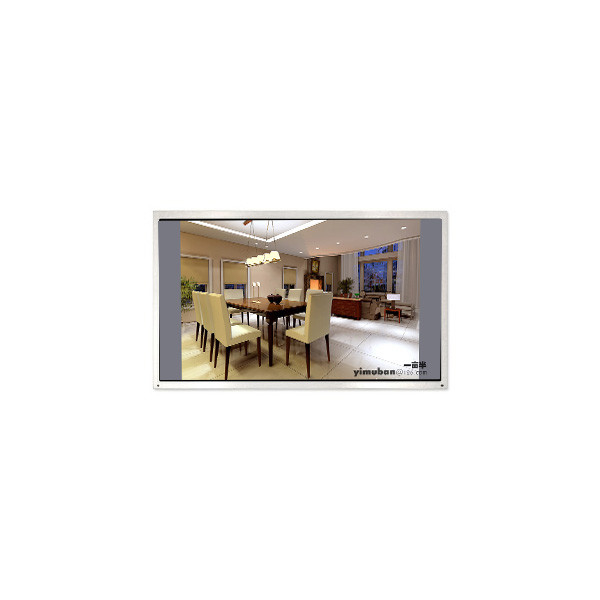

Original 18.1 inch ITSX88E4 1280*1024 60Hz lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | IDTech |
| Model Number: | ITSX88E4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ITSX88E4 | Diagonal Size: | 18.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(LCR)×1024, SXGA 90PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 359.04(W)×287.232(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description
Original 18.1 inch ITSX88E4 1280*1024 60Hz lcd panel
ITSX88E4 LCD Panel Product details :
| Brand | IDTech |
| Model P/N | ITSX88E4 |
| Diagonal Size | 18.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(LCR)×1024, SXGA 90PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 367.0(W)×295.2(H) mm |
| Outline Size | 389(W)×317.2(H)×35(D) mm |
| Surface | - |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 550:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Display Mode | DD-IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 40 (Typ.)(Tr+Td) |
| Display Colors | Grayscale |
| Lamp Type | 6 pcsCCFL, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.90Kgs (Typ.) |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| Original 18.1 inch ITSX88E4 1280*1024 60Hz lcd panel | |
ITSX88E4 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
ITSX88E4 LCD Panel Shipping and Package :
ITSX88E4 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
ITSX88E4 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
ITSX88E4 LCD Panel FAQ :
Q: Can I pay my order of ITSX88E4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of ITSX88E4 a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of ITSX88E4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of ITSX88E4 ?
A: Of course!sample order is welcome !
