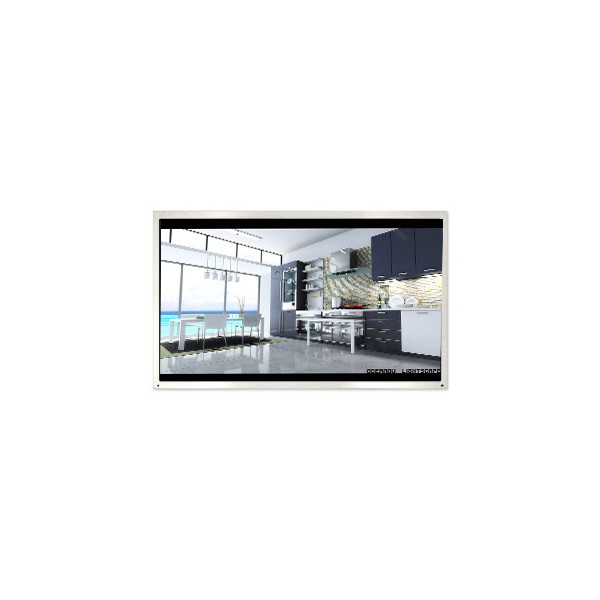

18.1 inch ITSX88 1280*1024 700 cd/m2 LCD screen High Quality
Product Details:
| Place of Origin: | China |
| Brand Name: | IDTech |
| Model Number: | ITSX88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ITSX88 | Diagonal Size: | 18.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(LCR)×1024, SXGA 90PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 359.04(W)×287.232(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description
18.1 inch ITSX88 1280*1024 700 cd/m2 LCD screen High Quality
ITSX88 LCD Panel Product details :
| Brand | IDTech |
| Model P/N | ITSX88 |
| Diagonal Size | 18.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(LCR)×1024, SXGA 90PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 367.0(W)×295.2(H) mm |
| Outline Dim. | 389(H)×317.2(V)×27(D) mm |
| Treatment | - |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 550:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Operating Mode | DD-IPS, Normally Black, Transmissive |
| Support Color | Grayscale |
| Light Source | CCFL [6 pcs], W/O Driver |
| Weight | 2.85Kgs (Typ.) |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 18.1 inch ITSX88 1280*1024 700 cd/m2 LCD screen High Quality | |
ITSX88 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
