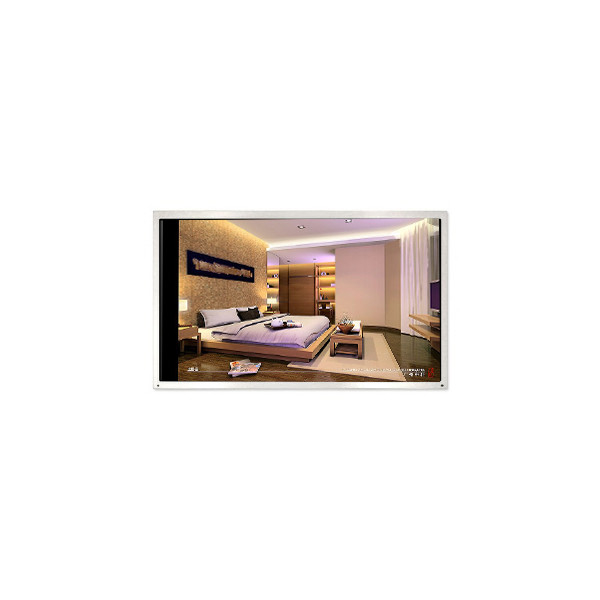

in stock 2048*1536 ITQX21G 20.8 inch 800 cd/m2 LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | IDTech |
| Model Number: | ITQX21G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ITQX21G | Diagonal Size: | 20.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2048(RGB)×1536, QXGA 122PPI |
| Pixel Format: | LCR Vertical Stripe | Active Area: | 423.9(W)×318(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description
in stock 2048*1536 ITQX21G 20.8 inch 800 cd/m2 LCD screen
ITQX21G LCD Panel Product details :
| Brand | IDTech |
| Model P/N | ITQX21G |
| Diagonal Size | 20.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2048(LCR)×1536, QXGA 122PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 423.9(W)×318(H) mm |
| Bezel Opening | 427.9(W)×322.0(H) mm |
| Outline Size | 457(W)×350(H)×46(D) mm |
| Treatment | - |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25/25 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | DD-IPS, Normally Black, Transmissive |
| Color Depth | Grayscale |
| Backlight | CCFL, With Inverter |
| Mass | 2.30Kgs (Typ.) |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 8-bit), 70 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| in stock 2048*1536 ITQX21G 20.8 inch 800 cd/m2 LCD screen | |
ITQX21G LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
ITQX21G LCD Panel Shipping and Package :
ITQX21G LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
ITQX21G LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
ITQX21G LCD Panel FAQ :
Q: Can You declare my order of ITQX21G a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of ITQX21G ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of ITQX21G ?
A: Of course!sample order is welcome !
Q: Can I pay my order of ITQX21G via credit card ?
A: Yes!you can use your credit card through your Paypal account.
