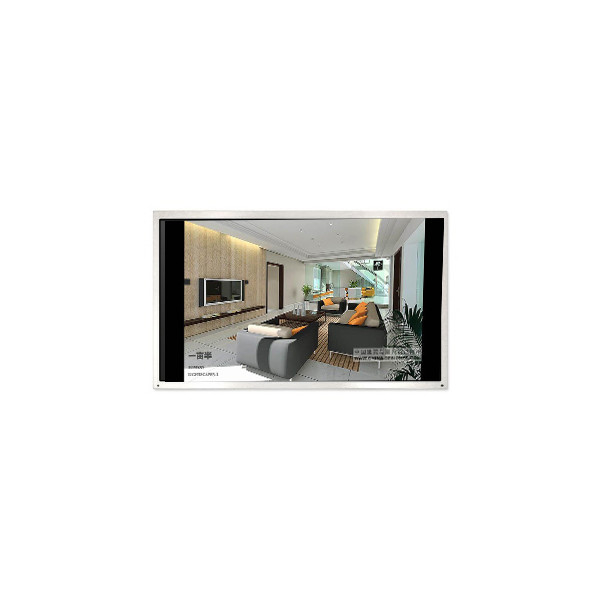

Name: ITQX20J 20.8 inch 2048*1536 70 pins LCD Monitor screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ITQX20J
Availability: InStock

Brand Name:	IDTech
Model Number:	ITQX20J
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ITQX20J

Diagonal Size:

20.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2048(RGB)×1536, QXGA 122PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

423.9(W)×318(H) Mm

Used For:

Desktop Monitor、Medical Imaging

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

ITQX20J 20.8 inch 2048*1536 70 pins LCD Monitor screen

ITQX20J LCD Panel Product details :

Brand	IDTech
Model P/N	ITQX20J
Diagonal Size	20.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2048(RGB)×1536, QXGA 122PPI
Pixel Format	RGB Vertical Stripe
Active Area	423.9(W)×318(H) mm
Bezel Opening	427.9(W)×322.0(H) mm
Outline(mm)	457 × 350× 46 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25/25 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	DD-IPS, Normally Black, Transmissive
Color Depth	16.7M 70%NTSC
Backlight	CCFL, With Inverter
Mass	2.30Kgs (Typ.)
Used for	Desktop Monitor,Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (4 ch, 8-bit), 70 pinsConnector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
ITQX20J 20.8 inch 2048*1536 70 pins LCD Monitor screen

ITQX20J LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ITQX20J LCD Panel Shipping and Package :

ITQX20J 20.8 inch 2048*1536 70 pins LCD Monitor screen 0

ITQX20J LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ITQX20J LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ITQX20J LCD Panel FAQ :

Q: Can I pay my order of ITQX20J via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of ITQX20J a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of ITQX20J ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of ITQX20J ?

A: Of course!sample order is welcome !
