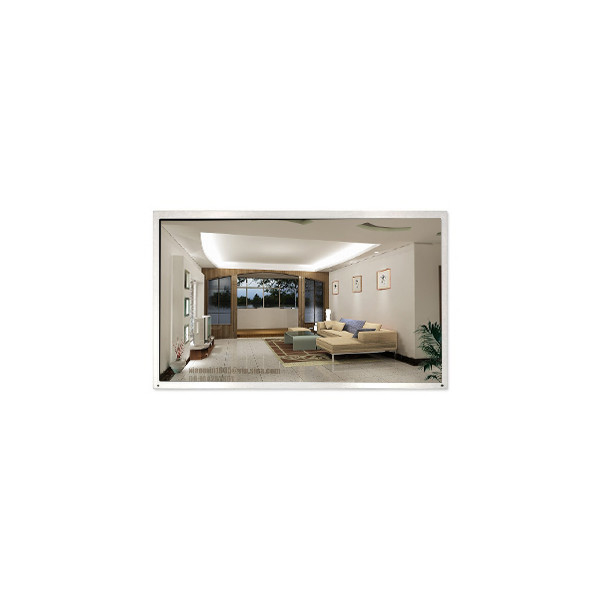

Name: hot sell 19.6 inch IAUX61F 1600*1200 1140 cd/m2 LCD screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: IAUX61F
Availability: InStock

Brand Name:	IDTech
Model Number:	IAUX61F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

IAUX61F

Diagonal Size:

19.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(LCR)×1200, UXGA 102PPI

Pixel Format:

LCR Vertical Stripe

Active Area:

398.4(W)×298.8(H) Mm

Used For:

Medical Imaging

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

hot sell 19.6 inch IAUX61F 1600*1200 1140 cd/m2 LCD screen

IAUX61F LCD Panel Product details :

Brand	IDTech
Model P/N	IAUX61F
Diagonal Size	19.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(LCR)×1200, UXGA 102PPI
Pixel Format	LCR Vertical Stripe
Active Area	398.4(W)×298.8(H) mm
Bezel Opening	-
Outline(mm)	427 × 322.4× 42 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	1140 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	20/20 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	DD-IPS, Normally Black, Transmissive
Color Depth	Grayscale
Backlight	12 pcsCCFL, 50K hours, With Inverter
Mass	2.30/2.50Kgs (Typ./Max.)
Used for	Medical Imaging
Refresh Rate	-
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 40 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C
hot sell 19.6 inch IAUX61F 1600*1200 1140 cd/m2 LCD screen

IAUX61F LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

IAUX61F LCD Panel Shipping and Package :

hot sell 19.6 inch IAUX61F 1600*1200 1140 cd/m2 LCD screen 0

IAUX61F LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

IAUX61F LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

IAUX61F LCD Panel FAQ :

Q: How long will I receive my goods IAUX61F ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of IAUX61F ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of IAUX61F ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
