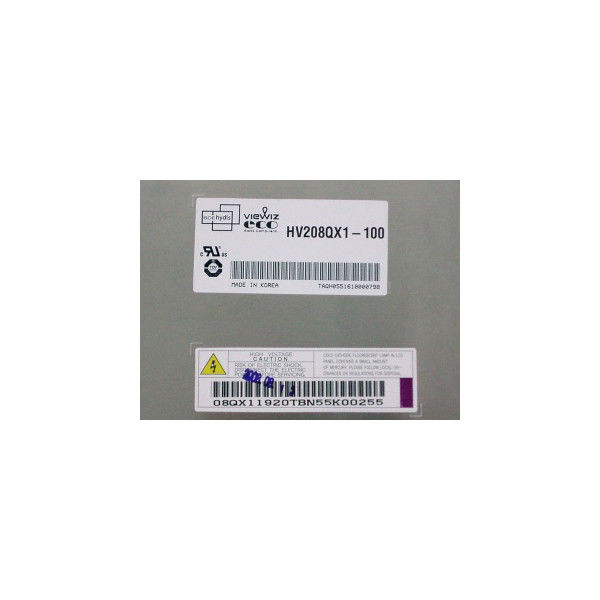

20.8 inch 2048*1536 HV208QX1-100 LCD screen Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE HYDIS |
| Model Number: | HV208QX1-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HV208QX1-100 | Diagonal Size: | 20.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 2048(LCR)×1536, QXGA 122PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 423.9(W)×318(H) Mm |
| Used For: | Medical Imaging | Touchscreen: | Without |
Product Description
20.8 inch 2048*1536 HV208QX1-100 LCD screen Parts
HV208QX1-100 LCD Panel Product details :
| Brand | BOE HYDIS |
| Model P/N | HV208QX1-100 |
| Diagonal Size | 20.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 2048(LCR)×1536, QXGA 122PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 423.9(W)×318(H) mm |
| Bezel Opening | 428.0(W)×322.0(H) mm |
| Outline Size | 457(W)×350(H)×45.5(D) mm |
| Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AFFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Display Colors | Grayscale |
| Lamp Type | 12 pcsCCFL, 50K hours, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.50Kgs (Typ.) |
| Application | Medical Imaging |
| Signal Interface | LVDS (4 ch, 8-bit), 70 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| 20.8 inch 2048*1536 HV208QX1-100 LCD screen Parts | |
HV208QX1-100 LCD Panel Shipping and Package :
HV208QX1-100 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
