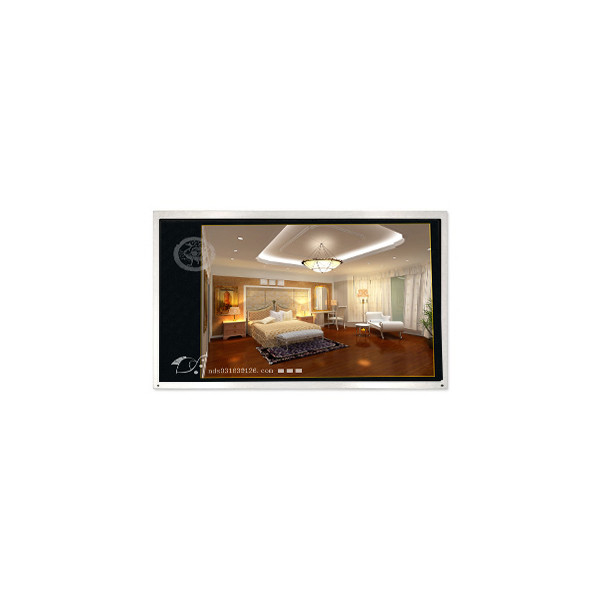

Name: G213QAN02.0 1536*2048 21.3 inch LVDS WLED LCD Panel screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G213QAN02.0
Availability: InStock

Brand Name:	AUO
Model Number:	G213QAN02.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G213QAN02.0

Diagonal Size:

21.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1536(RGB)×2048, QXGA 120PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

324.864(W)×433.152(H) Mm

Used For:

Medical Imaging

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

G213QAN02.0 1536*2048 21.3 inch LVDS WLED LCD Panel screen

G213QAN02.0 LCD Panel Product details :

Brand	AUO
Model P/N	G213QAN02.0
Diagonal Size	21.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1536(RGB)×2048, QXGA 120PPI
Pixel Format	RGB Vertical Stripe
Active Area	324.864(W)×433.152(H) mm
Bezel Opening	327.66(W)×435.95(H) mm
Outline Dim.	336(H)×453.1(V)×18.4(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	1.07B 100%sRGB
Light Source	WLED, 50K hours
Weight	2.66Kgs (Typ.)
Designed For	Medical Imaging
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (4 ch, 10-bit), 82 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
G213QAN02.0 1536*2048 21.3 inch LVDS WLED LCD Panel screen

G213QAN02.0 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

G213QAN02.0 LCD Panel Shipping and Package :

G213QAN02.0 1536*2048 21.3 inch LVDS WLED LCD Panel screen 0

G213QAN02.0 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

G213QAN02.0 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

G213QAN02.0 LCD Panel FAQ :

Q: How long will I receive my goods G213QAN02.0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of G213QAN02.0 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of G213QAN02.0 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of G213QAN02.0 ?

A: Of course!If you make a large order, we will give you a discount.
