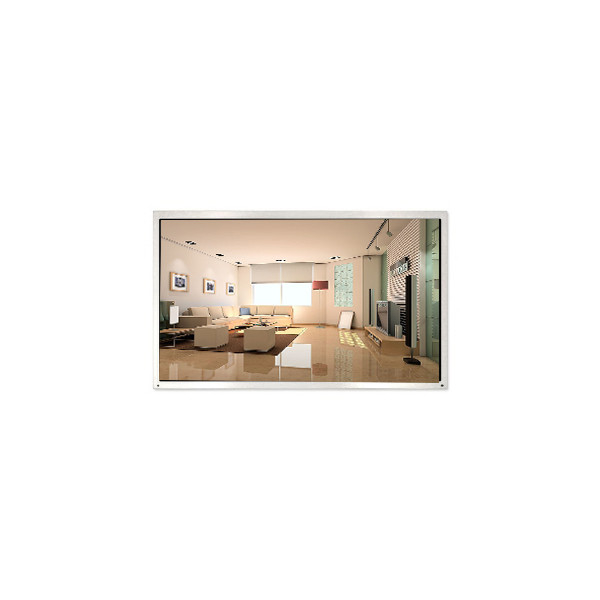

3840*2160 EPM315Qxxxx 32.0 inch 1000000:1 LCD Panel
  • name

3840*2160 EPM315Qxxxx 32.0 inch 1000000:1 LCD Panel

Brand Name: JOLED
Model Number: EPM315Qxxxx
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
EPM315Qxxxx
Diagonal Size:
32.0"
Panel Type:
AM-OLED, OLED, Full Module
Resolution:
3840(RGB)×2160, UHD 139PPI
Pixel Format:
RGBW Vertical Stripe
Active Area:
697.92(W)×392.58(H) Mm
Used For:
Desktop Monitor、Medical Imaging
Touchscreen:
Without
Supply Ability:
100000 Unit/Units per Month
Product Description

3840*2160 EPM315Qxxxx 32.0 inch 1000000:1 LCD Panel



EPM315Qxxxx LCD Panel Product details :



Brand JOLED
Model P/N EPM315Qxxxx
Diagonal Size 32.0"
Panel Type AM-OLED, OLED, Full Module
Resolution 3840(RGB)×2160, UHD 139PPI
Pixel Format RGB Vertical Stripe
Active Area 697.92(W)×392.58(H) mm
Bezel Opening -
Outline Size 715.828(W)×421.488(H) mm
Brightness 250 cd/m² (Min.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Best View on Symmetry
Display Colors 1.07B 100%DCI-P3
Frequency 60Hz
Weight 1.10Kgs (Typ.)
Surface Antiglare, Hard coating (2H), Antireflection
Contrast Ratio 1000000:1 (Min.) (TM)
Display Mode -
Response Time 0.1 (Typ.)(Tr+Td)
Lamp Type self
Touch Screen Without
Application Desktop Monitor,Medical Imaging
Signal Interface eDP (4 Lanes), eDP1.4a , HBR2 (5.4G/lane) , 50 pinsConnector
Input Voltage 24±1.2V
Environment Operating Temp.: -20 ~ 50 °C ;Storage Temp.: -30 ~ 60 °C
3840*2160 EPM315Qxxxx 32.0 inch 1000000:1 LCD Panel

EPM315Qxxxx LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.


EPM315Qxxxx LCD Panel Shipping and Package :

3840*2160 EPM315Qxxxx 32.0 inch 1000000:1 LCD Panel 0



EPM315Qxxxx LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

EPM315Qxxxx LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.


EPM315Qxxxx LCD Panel FAQ :



Q: How to make payment of EPM315Qxxxx ?

A: We accept T/T , Paypal , western union .



Q: If I place order now,when will you ship the goods of EPM315Qxxxx ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Can you give me a discount if I need a large quantity of EPM315Qxxxx ?

A: Of course!If you make a large order, we will give you a discount.



Q: How long will I receive my goods EPM315Qxxxx ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
