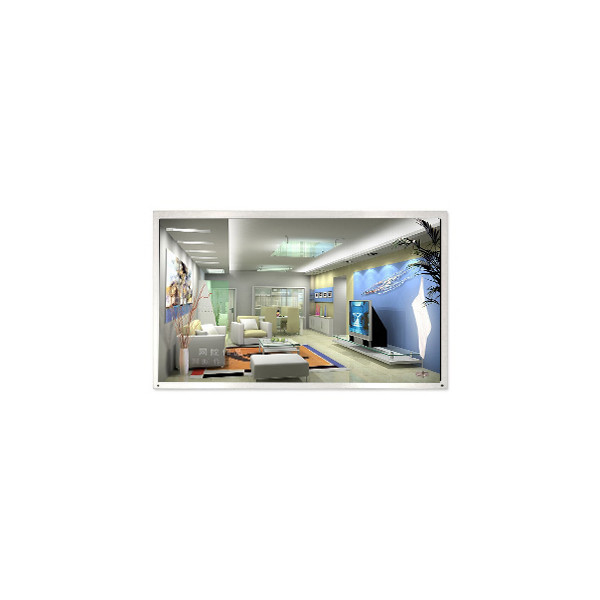

27.0 inch EPM269Q00V 50 pins 60Hz LCD Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | JOLED |
| Model Number: | EPM269Q00V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EPM269Q00V | Diagonal Size: | 27.0" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED, Full Module | Resolution: | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 596.16(W)×335.34(H) Mm |
| Used For: | Desktop Monitor、Medical Imaging | Touchscreen: | Without |
Product Description
27.0 inch EPM269Q00V 50 pins 60Hz LCD Screen display
EPM269Q00V LCD Panel Product details :
| Brand | JOLED |
| Model P/N | EPM269Q00V |
| Diagonal Size | 27.0" |
| Panel Type | AM-OLED, OLED, Full Module |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.16(W)×335.34(H) mm |
| Bezel Opening | - |
| Outline Dim. | 613.64(W)×358.624(H) mm |
| Luminance | 250 cd/m² (Min.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 1.07B 99% DCI-P3 |
| Weight | 800g (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 7.2%), Hard coating (2H), Antireflection |
| Contrast Ratio | 1000000:1 (Min.) (TM) |
| Response Time | 0.1 (Max.)(Tr+Tf) |
| Operating Mode | - |
| Light Source | self |
| Designed For | Desktop Monitor,Medical Imaging |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), HBR2 (5.4G/lane)50 pins Connector |
| Power Supply | 24±1.2V (Typ.) |
| Environment | Operating Temperature: -20 ~ 50 °C; Storage Temperature: -30 ~ 60 °C |
| 27.0 inch EPM269Q00V 50 pins 60Hz LCD Screen display | |
EPM269Q00V LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
EPM269Q00V LCD Panel Shipping and Package :
EPM269Q00V LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
EPM269Q00V LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
EPM269Q00V LCD Panel FAQ :
Q: Can You declare my order of EPM269Q00V to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods EPM269Q00V ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of EPM269Q00V ?
A: Of course!If you make a large order, we will give you a discount.
