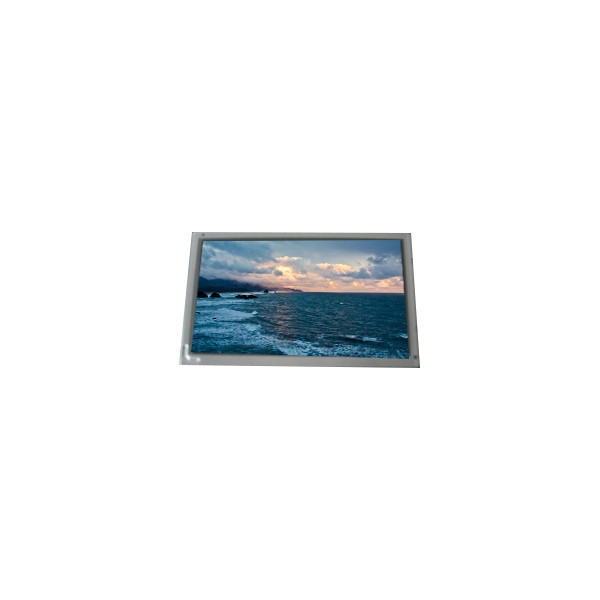

3.5 inch 320*240 SCF0305434GGC00 LCD screen Display

Brand Name:	Data Image
Model Number:	SCF0305434GGC00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

SCF0305434GGC00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

320(RGB)×240, QVGA 115PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

70.08(W)×52.56(H) Mm

Touch Panel:

PCAP, I²C

Used For:

Digital Still Camera、Digital Video Camera

Supply Ability:

100000 Unit/Units per Month

Product Description

3.5 inch 320*240 SCF0305434GGC00 LCD screen Display

SCF0305434GGC00 LCD Panel Product details :

Brand	Data Image
Model P/N	SCF0305434GGC00
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	320(RGB)×240, QVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.08(W)×52.56(H) mm
Bezel Opening	73.1(W)×55.6(H) mm
Outline Dim.	84.02(H)×66.14(V)×5.465(D)mm
Treatment	-
Luminance	250 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	60/60/50/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	WLED [6S1P], W/O Driver
Weight	-
Designed For	Digital Still Camera,Digital Video Camera
Frame Rate	60Hz
Touch Panel	PCAP, I²C
Interface Type	Parallel RGB (1 ch, 8-bit) + SPI, 50 pinsFPC
Power Supply	3.3/3.3V (Typ.)(VCC/VDD)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 80 °C
3.5 inch 320*240 SCF0305434GGC00 LCD screen Display

SCF0305434GGC00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

SCF0305434GGC00 LCD Panel Shipping and Package :

3.5 inch 320*240 SCF0305434GGC00 LCD screen Display 0

SCF0305434GGC00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

SCF0305434GGC00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

SCF0305434GGC00 LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd SCF0305434GGC00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order SCF0305434GGC00 ship?

A: The order are shipped within 1-2 working days after received the payment.
