LCD Touch Panel Display

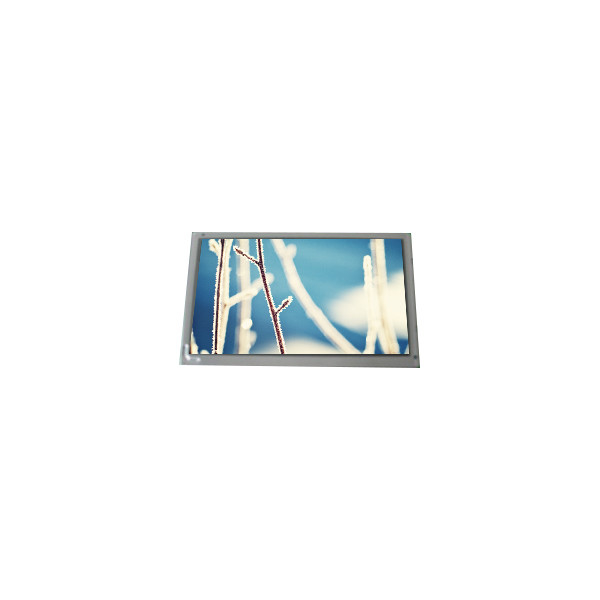

3.5 inch SCF0305C32GGU00 LCD screen with Handheld

All Category

Floor Standing Digital Signage

3.5 inch SCF0305C32GGU00 LCD screen with Handheld

Brand Name:	Data Image
Model Number:	SCF0305C32GGU00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

SCF0305C32GGU00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×480, HVGA 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

48.96(W)×73.44(H) Mm

Touch Panel:

PCAP, I²C

Used For:

Handheld & PDA

Supply Ability:

100000 Unit/Units per Month

Product Description

3.5 inch SCF0305C32GGU00 LCD screen with Handheld

SCF0305C32GGU00 LCD Panel Product details :

Brand	Data Image
Model P/N	SCF0305C32GGU00
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×480, HVGA 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	48.96(W)×73.44(H) mm
Bezel Opening	-
Outline Size	58(W)×100(H)×4.3(D) mm
Brightness	500 cd/m² (Typ.)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Best View on	12 o'clock
Display Colors	262K 60%NTSC
Frequency	55Hz
Weight	-
Surface	-
Contrast Ratio	250:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	5/15 (Typ.)(Tr/Td)
Lamp Type	1S6P WLED , 30K hours , Without Driver
Touch Screen	PCAP, I²C
Application	Handheld & PDA
Signal Interface	CPU/RGB/SPI, 45 pinsFPC
Input Voltage	2.8/2.8V (Typ.)(IOVCC/VCC)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
3.5 inch SCF0305C32GGU00 LCD screen with Handheld

SCF0305C32GGU00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

SCF0305C32GGU00 LCD Panel Shipping and Package :

3.5 inch SCF0305C32GGU00 LCD screen with Handheld 0

SCF0305C32GGU00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

SCF0305C32GGU00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

SCF0305C32GGU00 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods SCF0305C32GGU00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of SCF0305C32GGU00 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of SCF0305C32GGU00 ?

A:Of course!sample order is welcome !
