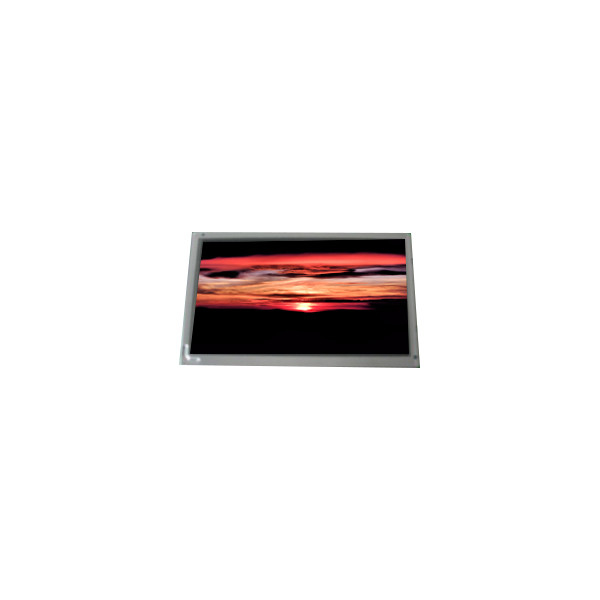

FG120110DSCWJG01 12.1 inch 20 pins LCD screen Display

Brand Name:	Data Image
Model Number:	FG120110DSCWJG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG120110DSCWJG01

Diagonal Size:

12.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 105PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

245.76(W)×184.32(H) Mm

Refresh Rate:

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

FG120110DSCWJG01 12.1 inch 20 pins LCD screen Display

FG120110DSCWJG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG120110DSCWJG01
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm
Bezel Opening	-
Outline Dim.	260.5(W)×204(H)×12.7(D) mm
Luminance	450 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Support Color	262K 46% NTSC
Weight	660g (Typ.)
Frame Rate	60Hz
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	700:1 (Typ.) (TM)
Response Time	6/17 (Typ.)(Tr/Td)
Operating Mode	Normally Black, Transmissive
Light Source	CCFL [2 pcs] , 50K hours , W/O Driver
Designed For	Industrial
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit)20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 70 °C; Storage Temperature: -40 ~ 80 °C
FG120110DSCWJG01 12.1 inch 20 pins LCD screen Display

FG120110DSCWJG01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

FG120110DSCWJG01 LCD Panel Shipping and Package :

FG120110DSCWJG01 12.1 inch 20 pins LCD screen Display 0

FG120110DSCWJG01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

FG120110DSCWJG01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

FG120110DSCWJG01 LCD Panel FAQ :

Q: What happen if the lcd panel FG120110DSCWJG01 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
