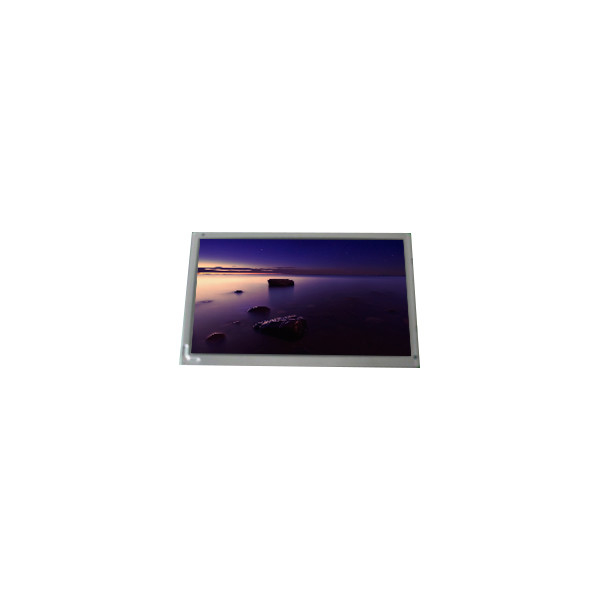

FG090052DSSWBG01 9.0 inch 50 pins LCD screen Panel

Brand Name:	Data Image
Model Number:	FG090052DSSWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG090052DSSWBG01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 104PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

198(W)×111.696(H) Mm

Refresh Rate:

Signal Interface:

Parallel RGB (1 Ch, 8-bit), 50 Pins FPC

Supply Ability:

100000 Unit/Units per Month

Product Description

FG090052DSSWBG01 9.0 inch 50 pins LCD screen Panel

FG090052DSSWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG090052DSSWBG01
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 104PPI
Pixel Format	RGB Vertical Stripe
Active Area	198(W)×111.696(H) mm
Bezel Opening	-
Outline Size	211.1(W)×126.5(H)×6.2(D) mm
Surface	-
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	4:30 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	16.7M
Lamp Type	3S11PWLED, 20K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	253g (Typ.)
Application
Signal Interface	Parallel RGB (1 ch, 8-bit), 50 pins FPC
Input Voltage	3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
FG090052DSSWBG01 9.0 inch 50 pins LCD screen Panel

FG090052DSSWBG01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

FG090052DSSWBG01 LCD Panel Shipping and Package :

FG090052DSSWBG01 9.0 inch 50 pins LCD screen Panel 0

FG090052DSSWBG01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

FG090052DSSWBG01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

FG090052DSSWBG01 LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel FG090052DSSWBG01 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
