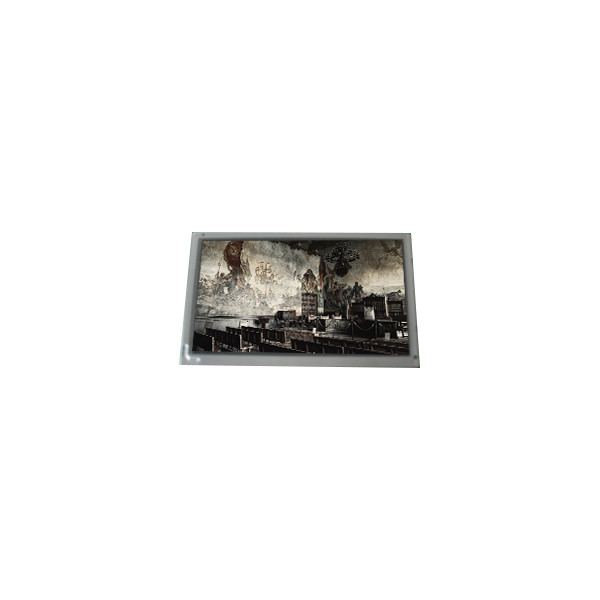

8.0 inch FG080031DSSWBG01 800*600 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Data Image |
| Model Number: | FG080031DSSWBG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | FG080031DSSWBG01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 125PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 162(W)×121.5(H) Mm |
| Refresh Rate: | 60Hz | Used For: | Digital Photo Frame、Portable DVD Player |
Product Description
8.0 inch FG080031DSSWBG01 800*600 LCD Screen
FG080031DSSWBG01 LCD Panel Product details :
| Brand | Data Image |
| Model P/N | FG080031DSSWBG01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 162(W)×121.5(H) mm |
| Bezel Opening | 163.8(W)×123.3(H) mm |
| Outline(mm) | 183(W)×141(H)×8.9(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 15/35 (Typ.)(Tr/Td) ms |
| Backlight | WLED , 10K hours , With LED Driver |
| Used for | Digital Photo Frame,Portable DVD Player |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), 60 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 8.0 inch FG080031DSSWBG01 800*600 LCD Screen | |
FG080031DSSWBG01 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
FG080031DSSWBG01 LCD Panel Shipping and Package :
FG080031DSSWBG01 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
FG080031DSSWBG01 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
FG080031DSSWBG01 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of FG080031DSSWBG01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods FG080031DSSWBG01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of FG080031DSSWBG01 ?
A: We accept T/T , Paypal , western union .
