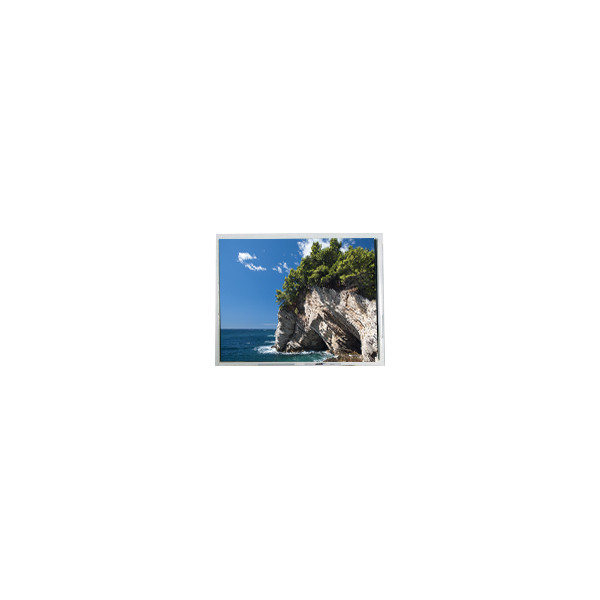

Name: 640*480 FG080010DNCWAGL4 8.0 inch 262K LCD Panel Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG080010DNCWAGL4
Availability: InStock

Brand Name:	Data Image
Model Number:	FG080010DNCWAGL4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG080010DNCWAGL4

Diagonal Size:

8.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162.24(W)×121.68(H) Mm

Used For:

Industrial

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 FG080010DNCWAGL4 8.0 inch 262K LCD Panel Module

FG080010DNCWAGL4 LCD Panel Product details :

Brand	Data Image
Model P/N	FG080010DNCWAGL4
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	162.24(W)×121.68(H) mm
Bezel Opening	-
Outline Size	183(W)×141(H)×14.5(D) mm
Surface	Antiglare, Hard coating
Brightness	400 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM)
Viewing Angle	65/65/55/65 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Display Colors	262K 55%NTSC
Lamp Type	1 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	360g
Application	Industrial
Signal Interface	Parallel RGB (1 ch, 6-bit), 32 pinsConnector
Input Voltage	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 70 °C
640*480 FG080010DNCWAGL4 8.0 inch 262K LCD Panel Module

FG080010DNCWAGL4 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG080010DNCWAGL4 LCD Panel Shipping and Package :

640*480 FG080010DNCWAGL4 8.0 inch 262K LCD Panel Module 0

FG080010DNCWAGL4 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG080010DNCWAGL4 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG080010DNCWAGL4 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of FG080010DNCWAGL4 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of FG080010DNCWAGL4 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of FG080010DNCWAGL4 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods FG080010DNCWAGL4 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
