Name: FG080000DNCWAGT1 8.0 inch LCD Touch Screen Monitor Parts
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG080000DNCWAGT1
Availability: InStock

Brand Name:	Data Image
Model Number:	FG080000DNCWAGT1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG080000DNCWAGT1

Diagonal Size:

8.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162.24(W)×121.68(H) Mm

Used For:

Industrial

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

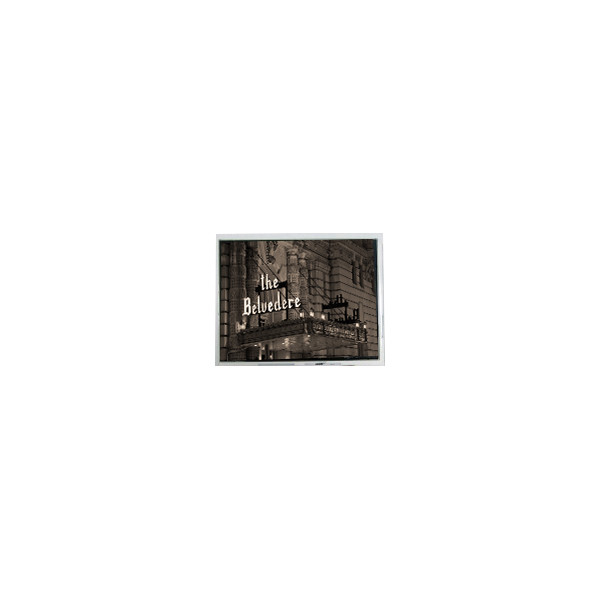

FG080000DNCWAGT1 8.0 inch LCD Touch Screen Monitor Parts

FG080000DNCWAGT1 LCD Panel Product details :

Brand	Data Image
Model P/N	FG080000DNCWAGT1
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	162.24(W)×121.68(H) mm
Bezel Opening	-
Outline Dim.	183(H)×141(V)×16.7(D) mm
Treatment	Antiglare
Luminance	320 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	65/65/55/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [1 pcs], 50K hours, W/O Driver
Weight	505g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	8-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit), 32 pinsConnector
Power Supply	3.3/5.0V (Typ./Max.)
Environment	Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -25 ~ 70 °C
FG080000DNCWAGT1 8.0 inch LCD Touch Screen Monitor Parts

FG080000DNCWAGT1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG080000DNCWAGT1 LCD Panel Shipping and Package :

FG080000DNCWAGT1 8.0 inch LCD Touch Screen Monitor Parts 0

FG080000DNCWAGT1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG080000DNCWAGT1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG080000DNCWAGT1 LCD Panel FAQ :

Q: Do you accept sample orders of FG080000DNCWAGT1 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods FG080000DNCWAGT1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can You declare my order of FG080000DNCWAGT1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of FG080000DNCWAGT1 ?

A: Of course!If you make a large order, we will give you a discount.
