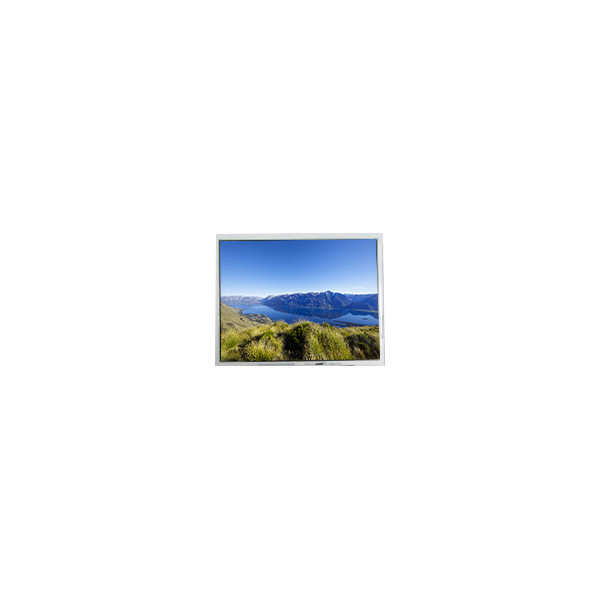

Name: mini 640*480 5.7 inch FG050722DSSWDG04 LCD Touch Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG050722DSSWDG04
Availability: InStock

Brand Name:	Data Image
Model Number:	FG050722DSSWDG04
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG050722DSSWDG04

Diagonal Size:

5.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Used For:

Industrial

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

mini 640*480 5.7 inch FG050722DSSWDG04 LCD Touch Screen

FG050722DSSWDG04 LCD Panel Product details :

Brand	Data Image
Model P/N	FG050722DSSWDG04
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.16(W)×89.12(H) mm
Outline Dim.	129(H)×98(V)×11(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	720 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	-
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	70/70/60/40 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 48%NTSC
Light Source	WLED [3S7P], 50K hours, With LED Driver
Weight	110g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	LVDS (1 ch, 6-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
mini 640*480 5.7 inch FG050722DSSWDG04 LCD Touch Screen

FG050722DSSWDG04 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG050722DSSWDG04 LCD Panel Shipping and Package :

mini 640*480 5.7 inch FG050722DSSWDG04 LCD Touch Screen 0

FG050722DSSWDG04 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG050722DSSWDG04 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG050722DSSWDG04 LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd FG050722DSSWDG04 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order FG050722DSSWDG04 ship?

A: The order are shipped within 1-2 working days after received the payment.
