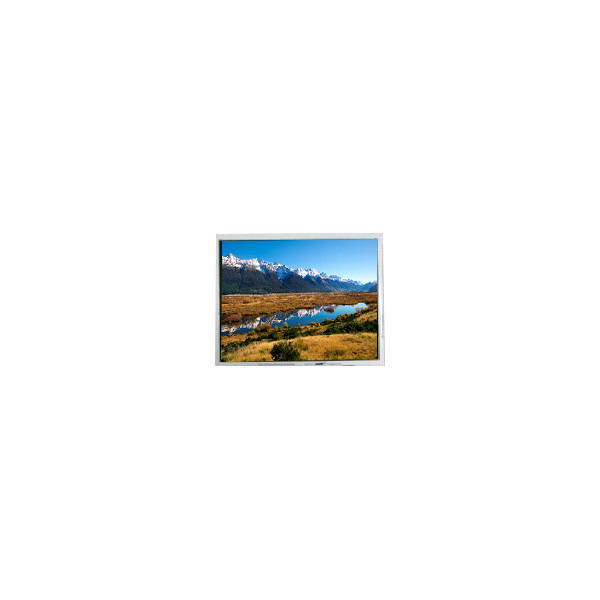

Name: High Quality 640*480 FG050720DUSWMGL4 630 cd/m2 5.7 inch LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG050720DUSWMGL4
Availability: InStock

Brand Name:	Data Image
Model Number:	FG050720DUSWMGL4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG050720DUSWMGL4

Diagonal Size:

5.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Used For:

Industrial

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

High Quality 640*480 FG050720DUSWMGL4 630 cd/m2 5.7 inch LCD Screen

FG050720DUSWMGL4 LCD Panel Product details :

Brand	Data Image
Model P/N	FG050720DUSWMGL4
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.16(W)×89.12(H) mm
Outline Size	127(W)×98.43(H)×7(D) mm
Surface	Antiglare
Brightness	630 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	15/35 (Typ.)(Tr/Td)
Display Colors	262K 48%NTSC
Lamp Type	3S7PWLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	110g (Typ.)
Application	Industrial
Signal Interface	Parallel RGB (1 ch, 6-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
High Quality 640*480 FG050720DUSWMGL4 630 cd/m2 5.7 inch LCD Screen

FG050720DUSWMGL4 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG050720DUSWMGL4 LCD Panel Shipping and Package :

High Quality 640*480 FG050720DUSWMGL4 630 cd/m2 5.7 inch LCD Screen 0

FG050720DUSWMGL4 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG050720DUSWMGL4 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG050720DUSWMGL4 LCD Panel FAQ :

Q: How long will I receive my goods FG050720DUSWMGL4 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q:Can You declare my order of FG050720DUSWMGL4 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q:Can I pay my order of FG050720DUSWMGL4 via credit card ?

A:Yes!you can use your credit card through your Paypal account.
