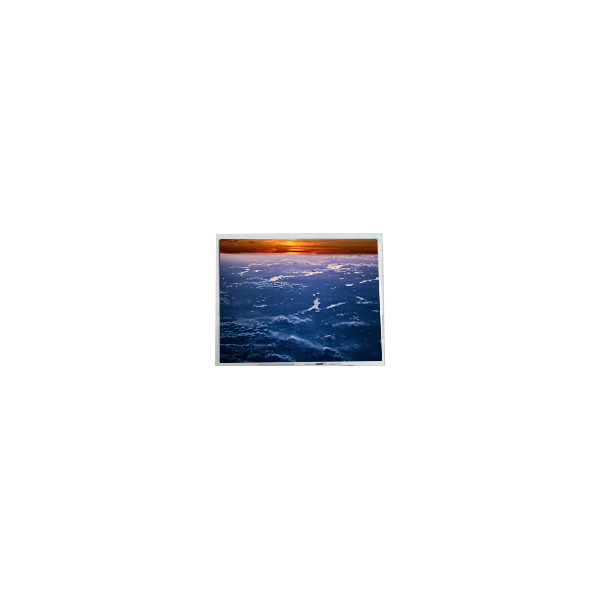

FG050701DSSWBGL2 5.7 inch 320*240 262K lcd screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Data Image |
| Model Number: | FG050701DSSWBGL2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | FG050701DSSWBGL2 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Used For: | Industrial | Refresh Rate: | 60Hz |
Product Description
FG050701DSSWBGL2 5.7 inch 320*240 262K lcd screen Monitor
FG050701DSSWBGL2 LCD Panel Product details :
| Brand | Data Image |
| Model P/N | FG050701DSSWBGL2 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.2(W)×89.4(H) mm |
| Outline(mm) | 127 × 98.43× 9.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 490 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 15/35 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 55%NTSC |
| Backlight | 3S7PWLED, 50K hours, With LED Driver |
| Mass | 110g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), 33 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| FG050701DSSWBGL2 5.7 inch 320*240 262K lcd screen Monitor | |
FG050701DSSWBGL2 LCD Panel Shipping and Package :
FG050701DSSWBGL2 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel FG050701DSSWBGL2 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
