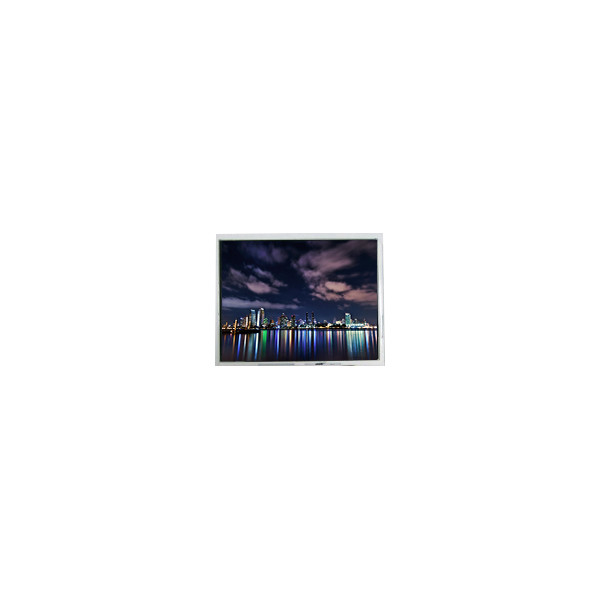

Hot Sell 5.7 inch FG050701DSSWBG02 320*240 lcd Touch screen

Hot Sell 5.7 inch FG050701DSSWBG02 320*240 lcd Touch screen

Brand Name: Data Image
Model Number: FG050701DSSWBG02
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
FG050701DSSWBG02
Diagonal Size:
5.7"
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
320(RGB)×240, QVGA 70PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
115.2(W)×86.4(H) Mm
Used For:
Industrial
Refresh Rate:
60Hz
Supply Ability:
100000 Unit/Units per Month
Product Description

Hot Sell 5.7 inch FG050701DSSWBG02 320*240 lcd Touch screen



FG050701DSSWBG02 LCD Panel Product details :



Brand Data Image
Model P/N FG050701DSSWBG02
Diagonal Size 5.7"
Panel Type a-Si TFT-LCD, LCM
Resolution 320(RGB)×240, QVGA 70PPI
Pixel Format RGB Vertical Stripe
Active Area 115.2(W)×86.4(H) mm
Bezel Opening -
Outline Size 127(W)×98.43(H)×11(D) mm
Brightness 390 cd/m² (Typ.)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Best View on 6 o'clock
Display Colors 262K 55%NTSC
Frequency 60Hz
Weight 128g
Surface Antiglare, Hard coating (3H)
Contrast Ratio 350:1 (Typ.) (TM)
Display Mode TN, Normally White, Transmissive
Response Time 15/35 (Typ.)(Tr/Td)
Lamp Type 3S7P WLED , 50K hours , With LED Driver
Touch Screen 4-wire Resistive Touch
Application Industrial
Signal Interface Parallel RGB (1 ch, 6-bit), 33 pinsConnector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
Hot Sell 5.7 inch FG050701DSSWBG02 320*240 lcd Touch screen

FG050701DSSWBG02 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.


FG050701DSSWBG02 LCD Panel Shipping and Package :

Hot Sell 5.7 inch FG050701DSSWBG02 320*240 lcd Touch screen 0



FG050701DSSWBG02 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG050701DSSWBG02 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.


FG050701DSSWBG02 LCD Panel FAQ :



Q: What happen if the lcd panel FG050701DSSWBG02 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.



Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .



Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!



Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
