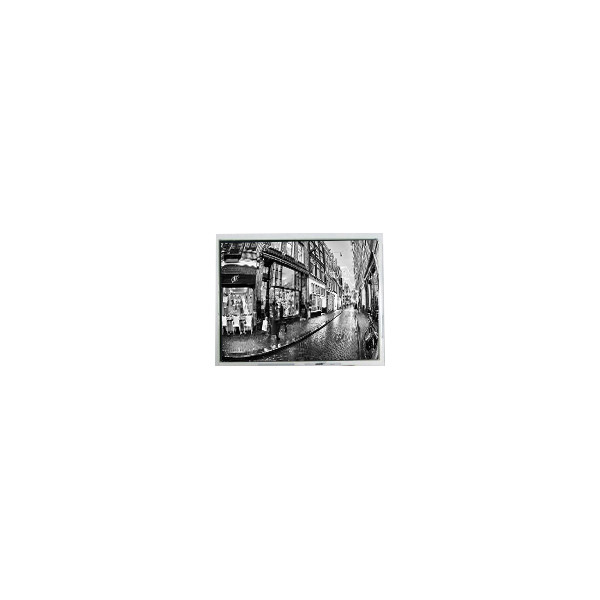

Name: new 5.6 inch FG050600ANSWBG02 320*234 lcd screen for Automotive
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG050600ANSWBG02
Availability: InStock

Brand Name:	Data Image
Model Number:	FG050600ANSWBG02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG050600ANSWBG02

Diagonal Size:

5.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×234 71PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

113.28(W)×84.708(H) Mm

Used For:

Automotive Display

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

new 5.6 inch FG050600ANSWBG02 320*234 lcd screen for Automotive

FG050600ANSWBG02 LCD Panel Product details :

Brand	Data Image
Model P/N	FG050600ANSWBG02
Diagonal Size	5.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234 71PPI
Pixel Format	RGB Vertical Stripe
Active Area	113.28(W)×84.708(H) mm
Bezel Opening	116.08(W)×87.51(H) mm
Outline(mm)	126.5 × 100× 6 (H×V×D)
Treatment	Antiglare (Haze 6%)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	250 : 1 (Typ.) (TM)
Viewing Angle	50/50/20/40 (Typ.)(CR≥10)
Response	15/20 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	Full color
Backlight	2S7PWLED, 20K hours, No Driver
Mass	133g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TFT Specific Analog RGB, 26 pinsFPC
Voltage Supply	5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
new 5.6 inch FG050600ANSWBG02 320*234 lcd screen for Automotive

FG050600ANSWBG02 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG050600ANSWBG02 LCD Panel Shipping and Package :

new 5.6 inch FG050600ANSWBG02 320*234 lcd screen for Automotive 0

FG050600ANSWBG02 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG050600ANSWBG02 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG050600ANSWBG02 LCD Panel FAQ :

Q: How can I trace my order of FG050600ANSWBG02 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of FG050600ANSWBG02 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of FG050600ANSWBG02 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of FG050600ANSWBG02 ?

A: Of course!If you make a large order, we will give you a discount.
