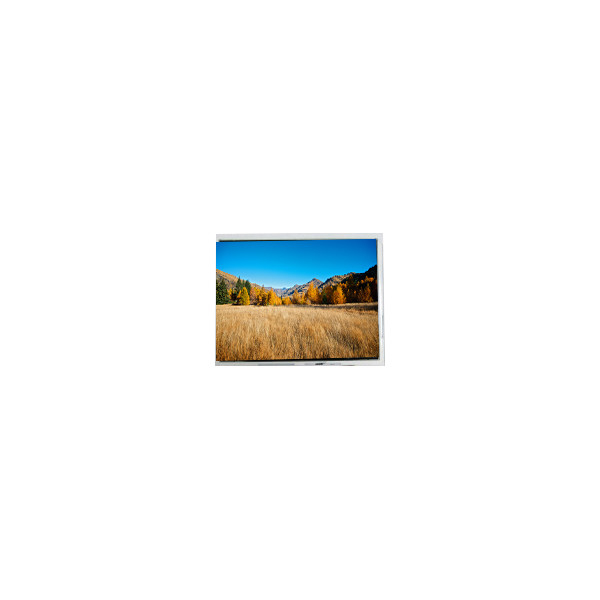

Name: 320*234 FG050020DNCWBG01 5.0inch 262K lcd screen Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG050020DNCWBG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG050020DNCWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG050020DNCWBG01

Diagonal Size:

5.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×234 79PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

102.72(W)×74.53(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

320*234 FG050020DNCWBG01 5.0inch 262K lcd screen Module

FG050020DNCWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG050020DNCWBG01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234 79PPI
Pixel Format	RGB Vertical Stripe
Active Area	102.72(W)×74.53(H) mm
Bezel Opening	107(W)×78.9(H) mm
Outline Size	126.6(W)×92.4(H)×13(D) mm
Surface	Antiglare
Brightness	350 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	5/25 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	WLED, 20K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	168g (Typ.)
Application	Industrial
Signal Interface	Parallel RGB (1 ch, 6-bit), 32 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
320*234 FG050020DNCWBG01 5.0inch 262K lcd screen Module

FG050020DNCWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG050020DNCWBG01 LCD Panel Shipping and Package :

320*234 FG050020DNCWBG01 5.0inch 262K lcd screen Module 0

FG050020DNCWBG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG050020DNCWBG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG050020DNCWBG01 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of FG050020DNCWBG01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of FG050020DNCWBG01 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of FG050020DNCWBG01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of FG050020DNCWBG01 ?

A: Of course!sample order is welcome !
