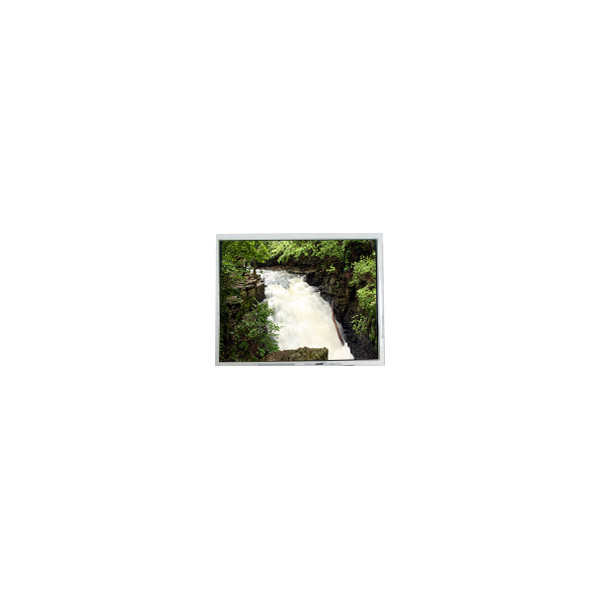

Name: FG040310DSSWBG01 4.3 inch lcd screen with Industrial
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG040310DSSWBG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG040310DSSWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG040310DSSWBG01

Diagonal Size:

4.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×272, WQVGA 128PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

95.04(W)×53.856(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

FG040310DSSWBG01 4.3 inch lcd screen with Industrial

FG040310DSSWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG040310DSSWBG01
Diagonal Size	4.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272, WQVGA 128PPI
Pixel Format	RGB Vertical Stripe
Active Area	95.04(W)×53.856(H) mm
Bezel Opening	98.7(W)×57.5(H) mm
Outline Dim.	105.5(H)×67.2(V)×4.25(D)mm
Treatment	Clear
Luminance	240 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	-
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	WLED [7S1P], 40K hours, W/O Driver
Weight	56.0g
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Power Supply	2.5/5.0V (Typ.)(VCC/AVDD)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
FG040310DSSWBG01 4.3 inch lcd screen with Industrial

FG040310DSSWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG040310DSSWBG01 LCD Panel Shipping and Package :

FG040310DSSWBG01 4.3 inch lcd screen with Industrial 0

FG040310DSSWBG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG040310DSSWBG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG040310DSSWBG01 LCD Panel FAQ :

Q: How can I trace my order of FG040310DSSWBG01 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of FG040310DSSWBG01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of FG040310DSSWBG01 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of FG040310DSSWBG01 ?

A: Of course!If you make a large order, we will give you a discount.
