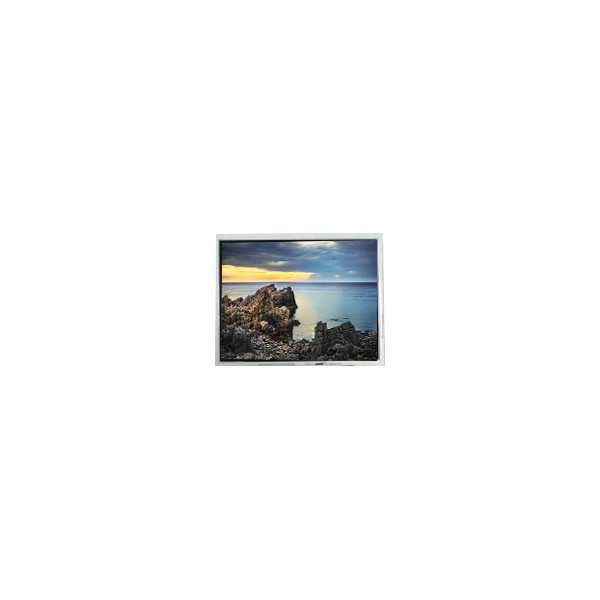

Name: new 3.5 inch FG030568DSSWBGT1 320*240 lcd screen for Handheld
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG030568DSSWBGT1
Availability: InStock

Brand Name:	Data Image
Model Number:	FG030568DSSWBGT1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG030568DSSWBGT14

Diagonal Size:

3.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 115PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

70.08(W)×52.56(H) Mm

Used For:

Industrial、Handheld & PDA、Portable Navigation

Touchscreen:

4-wire Resistive Touch

Supply Ability:

100000 Unit/Units per Month

Product Description

new 3.5 inch FG030568DSSWBGT1 320*240 lcd screen for Handheld

FG030568DSSWBGT1 LCD Panel Product details :

Brand	Data Image
Model P/N	FG030568DSSWBGT1
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.08(W)×52.56(H) mm
Bezel Opening	73.7(W)×55.3(H) mm
Outline Dim.	77.8(H)×64.5(V)×4.3(D) mm
Treatment	Antiglare (Haze 5%)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	200:1 (Min.) (TM)
View Direction	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [6S1P], 40K hours, W/O Driver
Weight	40.0g (Typ.)
Designed For	Industrial,Handheld & PDA,Portable Navigation
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C
new 3.5 inch FG030568DSSWBGT1 320*240 lcd screen for Handheld

FG030568DSSWBGT1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG030568DSSWBGT1 LCD Panel Shipping and Package :

new 3.5 inch FG030568DSSWBGT1 320*240 lcd screen for Handheld 0

FG030568DSSWBGT1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG030568DSSWBGT1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG030568DSSWBGT1 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of FG030568DSSWBGT1 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of FG030568DSSWBGT1 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of FG030568DSSWBGT1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of FG030568DSSWBGT1 ?

A: we will give you tracking number then you can trace your order from website.
