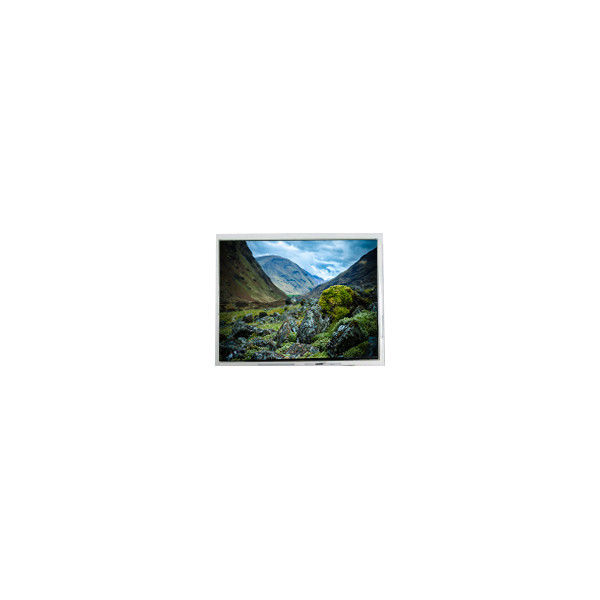

Name: FG030561DNSWBG01 3.5 inch 320*240 WLED 16.7M lcd Display parts
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG030561DNSWBG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG030561DNSWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG030561DNSWBG01

Diagonal Size:

3.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 115PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

70.08(W)×52.56(H) Mm

Used For:

Digital Still Camera、Digital Video Camera

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

FG030561DNSWBG01 3.5 inch 320*240 WLED 16.7M lcd Display parts

FG030561DNSWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG030561DNSWBG01
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.08(W)×52.56(H) mm
Bezel Opening	73.7(W)×55.3(H) mm
Outline Dim.	77.8(H)×64.5(V)×3.2(D) mm
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	50/50/40/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	WLED [3S2P], W/O Driver
Weight	-
Designed For	Digital Still Camera,Digital Video Camera
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Serial RGB (8-bit) + SPI, CCIR601/656, 50 pinsFPC
Power Supply	3.3/3.3V (Typ.)(VCI/VDDIO)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
FG030561DNSWBG01 3.5 inch 320*240 WLED 16.7M lcd Display parts

FG030561DNSWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG030561DNSWBG01 LCD Panel Shipping and Package :

FG030561DNSWBG01 3.5 inch 320*240 WLED 16.7M lcd Display parts 0

FG030561DNSWBG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG030561DNSWBG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG030561DNSWBG01 LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the FG030561DNSWBG01 sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
