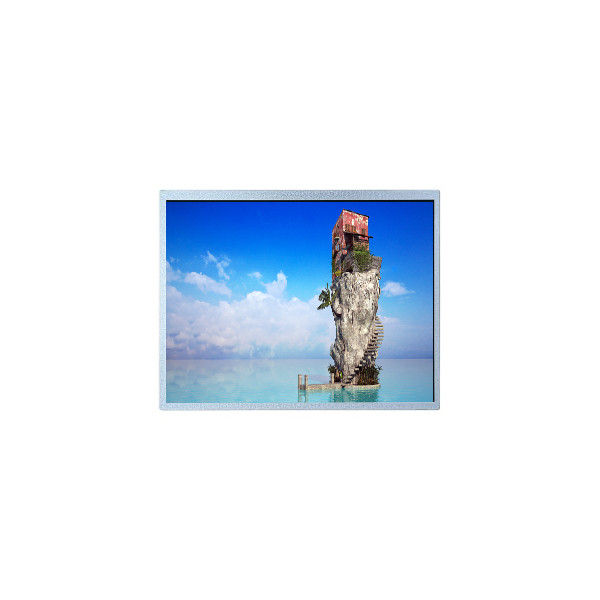

8.0 inch FG08007CDSSWBG01 800*600 40 pins lcd Screen

8.0 inch FG08007CDSSWBG01 800*600 40 pins lcd Screen

Brand Name: Data Image
Model Number: FG08007CDSSWBG01
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
FG08007CDSSWBG01
Diagonal Size:
8.0"
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
800(RGB)×600, SVGA 125PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
162(W)×121.5(H) Mm
Used For:
Outdoor High Brightness、Automotive Display
Touchscreen:
Without
Supply Ability:
100000 Unit/Units per Month
Product Description

8.0 inch FG08007CDSSWBG01 800*600 40 pins lcd Screen



FG08007CDSSWBG01 LCD Panel Product details :



Brand Data Image
Model P/N FG08007CDSSWBG01
Diagonal Size 8.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 125PPI
Pixel Format RGB Vertical Stripe
Active Area 162(W)×121.5(H) mm
Bezel Opening 164.8(W)×124.3(H) mm
Outline (mm) 183×141×10 (H×V×D)
Treatment Antiglare
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Response 10/15 (Typ.)(Tr/Td) ms
Good View at -
Work Mode TN, Normally White, Transmissive
Color Depth 262K
Backlight WLED, 20K hours, No Driver
Mass 234g (Typ.)
Used for Outdoor High Brightness,Automotive Display
Refresh Rate 60Hz
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit), FPC40 pins
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
8.0 inch FG08007CDSSWBG01 800*600 40 pins lcd Screen

FG08007CDSSWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
